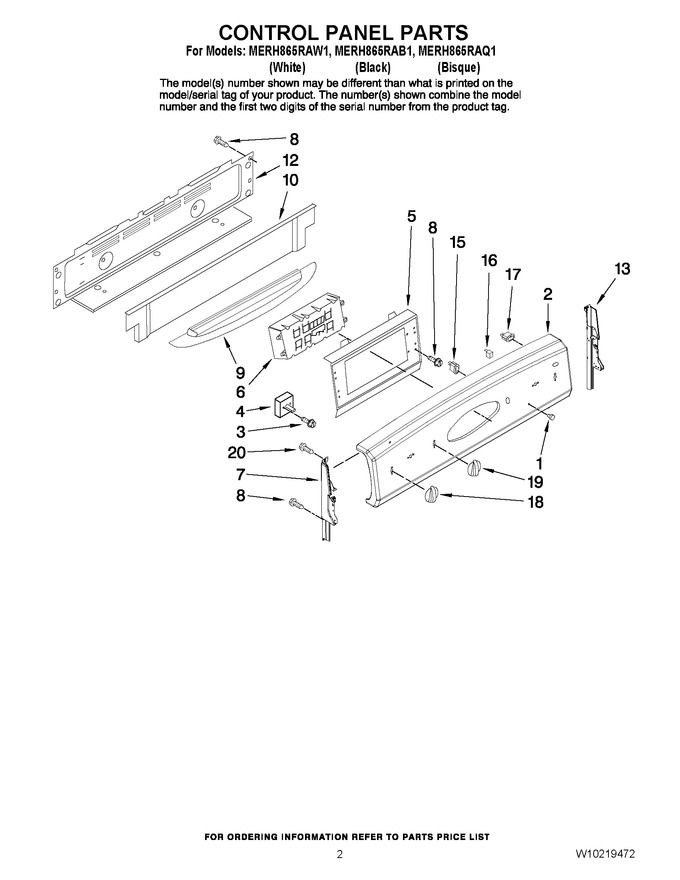

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3196068 | Lens (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 2 | 2602D363-09 | Panel, Backguard (black) |
|
- | |||||
| 2 | 2602D363-88 | Panel, Backguard (bisque) |
|
- | |||||
| 2 | 2602D363-81 | Panel, Backguard (white) |
|
- | |||||
| 3 | WP3400882 | Screw, Switch (10) (Replaces: 3400882) |
|
Immediately | $ 6.47 | ||||
| 4 | WP74008940 | Switch, Infinte (low Heat) (Replaces: 7403P877-60) |
|
Immediately | $ 125.54 | ||||
| 4 | 7450P094-60 | Switch, Infinte (dual (rf) (1)) |
|
- | |||||
| 4 | WP7403P239-60 | Switch, Infinte (6`` (rr/lr)(2)) (Replaces: 7403P372-60) |
|
Immediately | $ 35.10 | ||||
| 4 | WP7403P238-60 | Switch, Infinte (8`` (lf) (1)) (Replaces: 7403P373-60) |
|
Immediately | $ 57.78 | ||||
| 5 | 3801F844-51 | Bracket, Control |
|
$ 34.28 | |||||
| 6 | W10141433 | Control W/overlay (black) |
|
- | |||||
| 6 | W10141422 | Control W/overlay (bisque) |
|
- | |||||
| 6 | W10141425 | Control W/overlay (white) |
|
$ 353.39 | |||||
| 7 | 3807F703-78 | End Cap, Left (bisque) |
|
- | |||||
| 7 | 3807F703-70 | End Cap, Left (black) |
|
- | |||||
| 7 | 3807F703-71 | End Cap, Left (white) |
|
- | |||||
| 8 | W11233072 | Screw (Replaces: 4159450) |
|
Immediately | $ 12.62 | ||||
| 9 | 3604F382-81 | Shield, Heat Visor (white) |
|
$ 32.49 | |||||
| 9 | 3604F382-88 | Shield, Heat Visor (bisque) |
|
$ 40.19 | |||||
| 9 | 3604F382-09 | Shield, Heat Visor (black) |
|
$ 50.83 | |||||
| 10 | 3604F381-19 | Shield, Vent |
|
$ 31.31 | |||||
| 12 | 4005F803-51 | Cover, Rear Wire |
|
$ 19.75 | |||||
| 13 | 3807F702-78 | End Cap, Right (bisque) |
|
$ 40.46 | |||||
| 13 | 3807F702-71 | End Cap, Right (white) |
|
- | |||||
| 13 | 3807F702-70 | End Cap, Right (black) |
|
- | |||||
| 15 | 7403P985-60 | Switch, Rocker (black) (Replaces: 7403P756-60) |
|
$ 82.20 | |||||
| 15 | 7403P758-60 | Switch, Rocker (bisque) |
|
- | |||||
| 15 | WP74010226 | Switch, Rocker (white) (Replaces: 7403P757-60) |
|
$ 86.45 | |||||
| 16 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.02 | ||||
| 17 | 7403P984-60 | Switch, Dual (bisque) |
|
$ 17.92 | |||||
| 17 | 7403P985-60 | Switch, Dual (black) |
|
$ 82.20 | |||||
| 17 | WP74010226 | Switch, Dual (white) (Replaces: 7403P926-60) |
|
$ 86.45 | |||||
| 18 | 7737P352-60 | Knob (4) (bisque/chrome) |
|
- | |||||
| 18 | 7737P350-60 | Knob (4) (black/chrome) |
|
- | |||||
| 18 | 7737P351-60 | Knob (4) (white/chrome) |
|
- | |||||
| 19 | 7737P355-60 | Knob, Warm (1) (bisque/chrome) |
|
- | |||||
| 19 | 7737P351-60 | Knob, Warm (1) (white/chrome) |
|
- | |||||
| 19 | 7737P390-60 | Knob, Warm (1) (black/chrome) |
|
- | |||||
| 20 | 7101P663-60 | Screw (2) (white) |
|
- | |||||
| 20 | WP98008545 | Screw (2) (black) (Replaces: 7101P633-60) |
|
$ 15.94 | |||||
| 20 | W11233072 | Screw (2) (bisque) (Replaces: 7101P664-60) |
|
Immediately | $ 12.62 |
