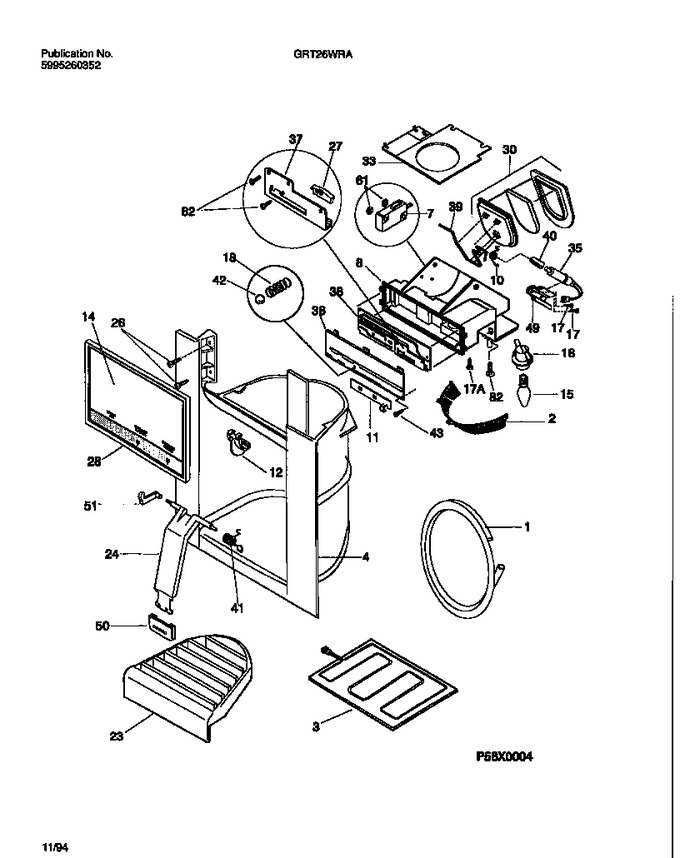

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215294102 | Tube-water Inlet, Formed, Plastic, Dispenser |
|
- | |||||
| 2 | 215732101 | Deflector-ice Disp,white |
|
- | |||||
| 3 | 215484300 | Heater-door Housing |
|
$ 40.85 | |||||
| 4 | 215922301 | Housing-dispenser, White |
|
$ 140.86 | |||||
| 7 | 218284800 | Switch-actuator,micro |
|
- | |||||
| 8 | 215763501 | Module - Dispenser |
|
- | |||||
| 10 | 218209800 | Spring,dispenser Door |
|
- | |||||
| 11 | 215253300 | Slide - Selector Sw |
|
$ 30.80 | |||||
| 12 | 215627201 | Knob - Selector, White |
|
- | |||||
| 14 | 218064401 | Label-module Cover, White |
|
- | |||||
| 15 | 218284900 | Light Bulb / Lamp, 4w, 115v |
|
- | |||||
| 16 | 240548901 | Socket-light/lamp (Replaces: 215284900) |
|
$ 63.70 | |||||
| 17 | 215794400 | Screw,6 X 1/4 |
|
- | |||||
| 18 | 215760200 | Spring |
|
- | |||||
| 23 | 215447001 | Drip Tray, White |
|
$ 63.53 | |||||
| 24 | 215918001 | Actuator, White |
|
- | |||||
| 26 | 215503203 | Screw, Hilo Phil Pn Hd, 10-1/2 (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| 27 | 215254700 | Cam-slide |
|
- | |||||
| 28 | 215447101 | Cover-module, White |
|
- | |||||
| 30 | 215753600 | Door Assy-ice,w/gasket,insul |
|
- | |||||
| 33 | 218379901 | Heater-disp Throat |
|
$ 24.43 | |||||
| 35 | 218284700 | Heat Motor,115v |
|
- | |||||
| 36 | 215254400 | Cover-selector Sw |
|
- | |||||
| 37 | 215763400 | Guide-cam |
|
- | |||||
| 38 | 215894602 | Pc Board |
|
- | |||||
| 39 | 218284600 | Wire-ice Door |
|
- | |||||
| 40 | 218284500 | Yoke-heat Motor |
|
$ 35.01 | |||||
| 41 | 215917800 | Spring-actuator |
|
$ 10.03 | |||||
| 42 | 215756000 | Ball |
|
- | |||||
| 43 | 215760300 | Screw,4 X 3/8 |
|
$ 9.35 | |||||
| 49 | 215794000 | Bracket-heat Motor |
|
$ 34.81 | |||||
| 50 | 215918101 | Pad, Actuator, White |
|
- | |||||
| 51 | 215922200 | Cam-switch |
|
$ 13.28 | |||||
| 61 | 215766000 | Ring-retainer,micro Switch |
|
$ 34.40 | |||||
| *73006 | 5303917470 | Heat Motor Kit, 115v, Includes Items, 7,10, 15, 17, 35 |
|
- | |||||
| *73007 | 215781700 | Clip-tube |
|
- | |||||
| 17A | 215923400 | Washer-flat (non-illustrated) |
|
- | |||||
| 17A | 215840700 | Screw,truss Head,6-20 X 3/8 |
|
- | |||||
| 1A | 5308582501 | Tube-water Inlet, 93`` Plastic, Cut To Size |
|
- | |||||
| 38A | 215630800 | Washer, Ext Tooth Lock, Light Switch, (non-illustrated) |
|
- | |||||
| 38B | 215631000 | Nut, Hex, Light Switch (non-illustrated) |
|
- | |||||
| 38C | 215763900 | Cap-light Switch (non-illustrated) |
|
- |
