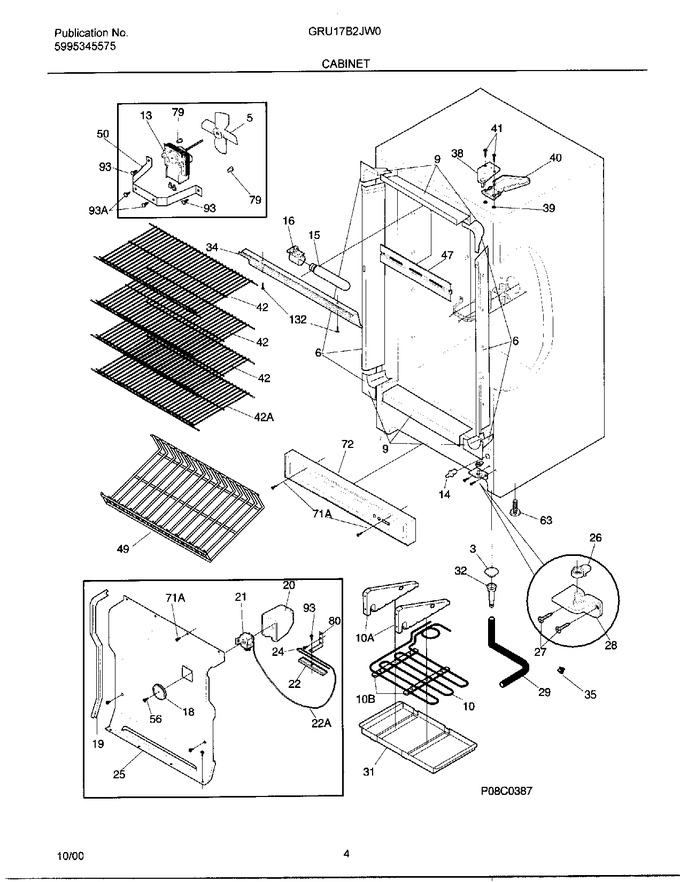

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	216604200		Breaker Kit W/corners				$ 227.12
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
10	216750000		Heater-drain Pan Assy		Appelez-nous	-
13	5304442620		Motor-fan   (Replaces: 216690400)				$ 282.51
18	216591700		Knob-control		Appelez-nous	-
19	216204900		Gasket, Evap Cover				$ 51.45
20	216230300		Cover, Temp Control				$ 49.88
21	216717900		Control-temperature				$ 217.41
22	05878562		Clamp		Appelez-nous	-
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216665300		Cover,evaporator		Appelez-nous	-
26	216503300		Ramp, Closer Door				$ 8.82
27	154518001		Screw-hinge, Cr, 1/4-20 X 1.000, Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304512272		Hose-drain   (Replaces: 216313503)			Immediately	$ 15.90
31	216732400		Pan-drain				$ 208.48
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216557600		Shield-light		Appelez-nous	-
35	216273000		Clip, Drain Hose				$ 22.42
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
42	216458400		Shelf,14.50x27.88 ,wh		Appelez-nous	-
47	216661601		Baffle-plate				$ 51.76
49	216278900		Trivet				$ 183.65
50	216394050		Bracket-motor Mtg Fan   (Replaces: 216394000)				$ 22.75
56	09950853		Screw, Knob		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	216174000		Grille/kickplate,white		Appelez-nous	-
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
10A	216710400		Bracket,top Drain Pan		Appelez-nous	-
10B	216710500		Bracket,btm. Drain Pan				$ 35.91
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
42A	216458200		Shelf,12.50x27.88 ,white		Appelez-nous	-
71A	216036601		Screw,quadrex   (Replaces: 216347500)				$ 13.65
93A	5303302760		Screw				$ 8.72
F14	297243800		Switch-light Plunger   (Replaces: 216472300)				$ 36.68
F15	5304517886		Bulb-light,40w ,130v   (Replaces: 216608600)			Immediately	$ 73.06
F16	5300136117		Socket, Light/lamp				$ 52.46
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	09948773		Insulation, Drain Tube				$ 12.60
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	216758400		Service Data Sheet		Appelez-nous	-
