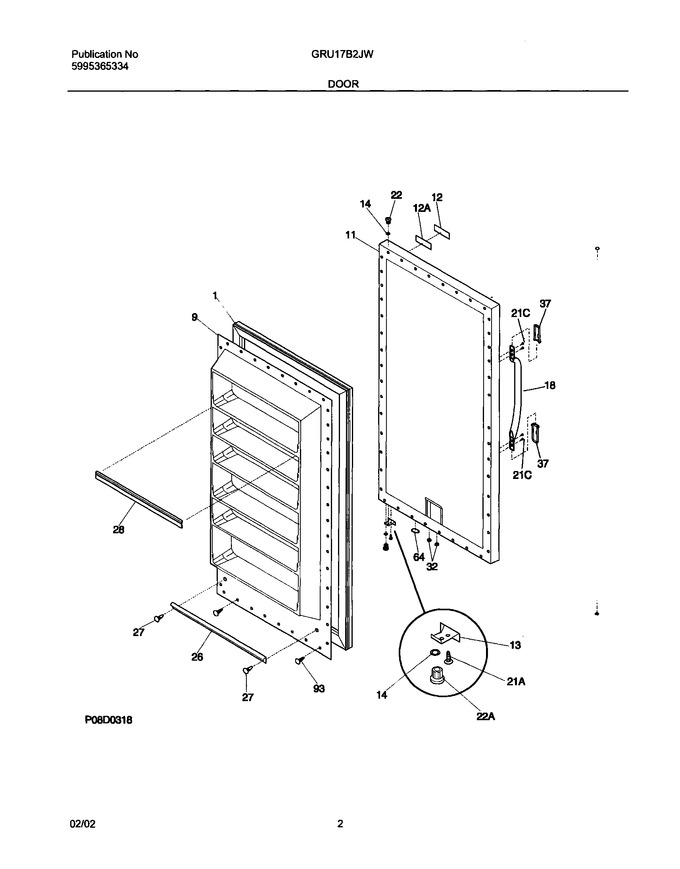

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507200 | Gasket-door,white (Replaces: 216522309) |
|
Immediately | $ 188.19 | ||||
| 9 | 216527813 | Panel-inner Door,frzr |
|
$ 270.75 | |||||
| 11 | 216526518 | Panel-outer Door,white |
|
- | |||||
| 12 | 316095403 | Nameplate, Gibson, White |
|
- | |||||
| 13 | 08016354 | Door Stop |
|
$ 36.07 | |||||
| 14 | 5303313518 | Washer, Sealing |
|
- | |||||
| 18 | 297311201 | Handle-door, White (Replaces: 218762701) |
|
Immediately | $ 80.60 | ||||
| 22 | 216443600 | Bearing |
|
$ 0.68 | |||||
| 26 | 216524201 | Gasket,secondary (Replaces: 216524200) |
|
$ 49.62 | |||||
| 27 | 5303212828 | Clip,panel |
|
$ 16.63 | |||||
| 28 | 216951600 | Rack-door,wide (Replaces: 216807700) |
|
$ 69.40 | |||||
| 32 | 5309950074 | Valve, Breather |
|
$ 12.48 | |||||
| 37 | 215870619 | Trim-handle, 2.47``, White, W/chrome Band |
|
$ 72.72 | |||||
| 64 | 216403700 | Plug-button,door Base |
|
$ 58.12 | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 12A | 216373000 | Frame-nameplate |
|
$ 4.04 | |||||
| 21A | 08005520 | Screw-door Stop |
|
- | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 22A | 297006800 | Bearing-hinge, Btm (Replaces: 216503200) |
|
$ 12.29 | |||||
| NI | 216722100 | Harness-lid/defrost |
|
- |
