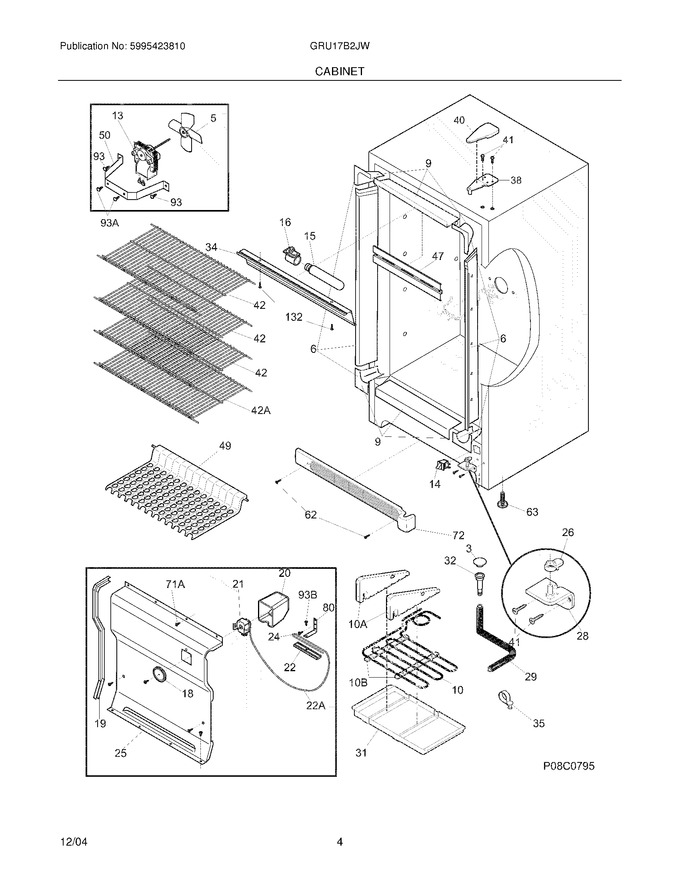

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	216604200		Breaker Kit W/corners				$ 227.12
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
10	216740900		Heater-drain Pan Assy,tubing ,formed		Appelez-nous	-
14	216822900		Switch,light/lamp ,ramp			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
18	216707200		Knob,temp Control				$ 44.10
19	216204900		Gasket, Evap Cover				$ 51.45
20	216230300		Cover, Temp Control				$ 49.88
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216820400		Cover-evaporator		Appelez-nous	-
26	216503300		Ramp,door Closer				$ 8.82
27	154518001		Screw,door Stop ,10 (a) X 0.875 ,btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304512272		Hose-drain   (Replaces: 216313503)			Immediately	$ 15.90
31	216732400		Pan-drain				$ 208.48
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216816200		Shield-light				$ 70.72
35	216629700		Clip		Appelez-nous	-
38	216939100		Hinge-upper				$ 59.54
40	297164400		Cover-hinge   (Replaces: 216809000)				$ 12.65
41	216954400		Screw,12-24 X.700 Hwh ,hinge Mtg.		Appelez-nous	-
42	216458400		Shelf,14.50x27.88 ,(2)		Appelez-nous	-
47	216661601		Baffle-plate				$ 51.76
49	216937701		Trivet   (Replaces: 216937700)				$ 99.77
50	216394050		Bracket,fan Motor Mount   (Replaces: 216394000)				$ 22.75
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297036907		Grille/kickplate,32`` ,white   (Replaces: 216946600)				$ 39.29
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
10A	216710400		Bracket,(2) ,top Drain Pan		Appelez-nous	-
10B	216710500		Bracket,(2) ,btm. Drain Pan				$ 35.91
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
42A	216458200		Shelf,12.50x27.88 ,white		Appelez-nous	-
71A	216036601		Screw,quadrex ,8-32 X 0.300 ,grounding   (Replaces: 216347500)				$ 13.65
93A	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
93B	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
F13	297309000		Motor,fan ,115 V   (Replaces: 216914200)			Immediately	$ 55.32
F21	5304497345		Control-temperature   (Replaces: 216807800)			Immediately	$ 110.14
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	09948773		Insulation, Drain Tube				$ 12.60
NI	216912400		Screw,hex Washer Head ,no.8-32 X .500 ,bracket Fan Mtr,(2)		Appelez-nous	-
