SELECT A DIAGRAM

01 - Cabinet


02 - Cavity


03 - Control Panel/top Assembly


04 - Door/drawer (stl)


05 - Supplemental Information


06 - Wiring Information

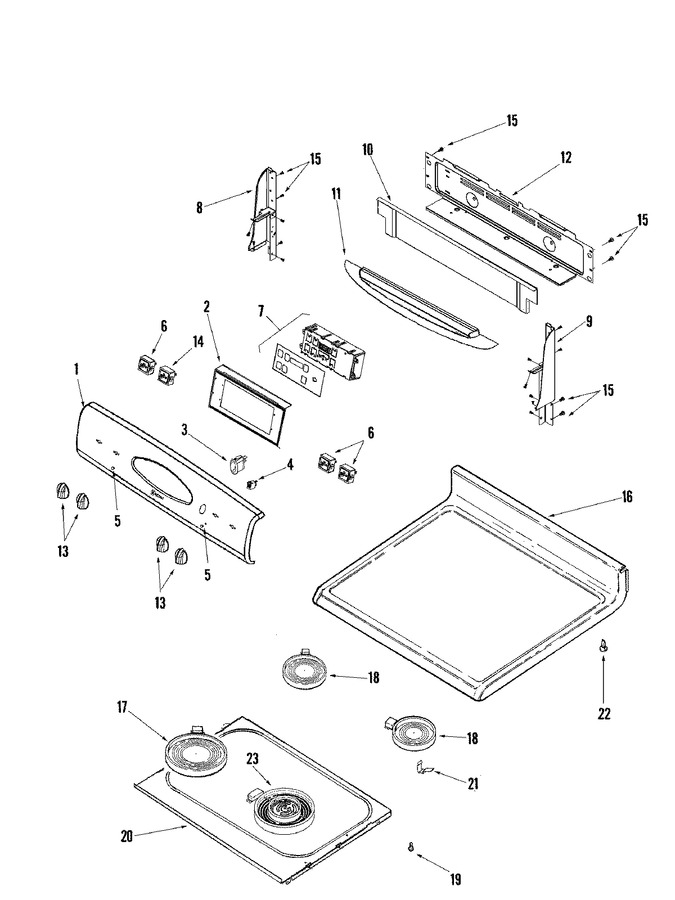

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74011194		Panel, Backguard (stl)	10	Appelez-nous	-
3	7403P985-60		Switch, Rocker (blk)   (Replaces: 74008937)	10			$ 82.20
4	WP74004153		Light, Indicator   (Replaces: 74004153)	10		Immediately	$ 8.02
5	WP7730P011-60		Lens, Indicator Light   (Replaces: 7730P011-60)	10			$ 5.16
6	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	10		Immediately	$ 57.78
6	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	10		Immediately	$ 35.10
6	WP7101P309-60		Screw   (Replaces: 7101P309-60)	10		Immediately	$ 6.26
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	74009213		Clock/overlay (blk)	10	Appelez-nous	-
8	74009022		End Cap (rt-blk)	10	Appelez-nous	-
9	74009023		End Cap (lt-blk)	10			$ 31.24
10	74009444		Shield, Vent	10	Appelez-nous	-
11	74009202		Shield, Heat Visor (blk)	10	Appelez-nous	-
12	74008836		Insulation, Foil (bkgd)	10	Appelez-nous	-
12	74010983		Cover, Rear Wire	10	Appelez-nous	-
13	74008945		Knob (blk/chr)	10			$ 16.92
14	WP74008940		Switch, Infinite (flex)   (Replaces: 74008940)	10		Immediately	$ 125.54
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
16	74011164		Top, Main Asy. (blk)	10	Appelez-nous	-
17	W10823696		Element (2500w)   (Replaces: 74009034)	10		Immediately	$ 192.83
18	W10823711		Element (1200w)   (Replaces: 74008568)	10		Immediately	$ 183.95
19	W11233072		Screw   (Replaces: 74009538)	10		Immediately	$ 12.62
20	74008900		Bottom, Burner Box	10	Appelez-nous	-
21	74007134		Spring, Element Support	10			$ 10.51
22	74008761		Spacer, Snap-in	10			$ 7.55
23	74009082		Element (12``)	10			$ 199.46

    View Diagram in Separate Window       Print Part List
