View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body

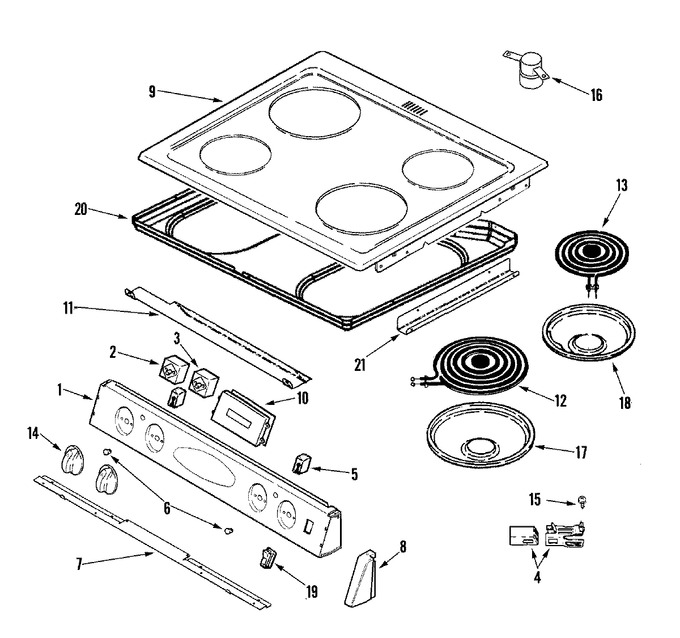

02 - Control Panel/top Asy (mes5552)
03 - Door/drawer
04 - Oven/base
05 - Supplemental Information
06 - Wiring Information (mes5552)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74011079 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 2 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 3 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 3 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 4 | 12001676 | Receptacle Assy. | 10 |
|
Immediately | $ 28.45 | |||
| 5 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 6 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 7 | 74004785 | Support, Manifold Panel | 10 |
|
- | ||||
| 8 | 74004822 | Cap, End (wht-lt) | 10 |
|
- | ||||
| 8 | 74004821 | Cap, End (wht-rt) | 10 |
|
- | ||||
| 9 | 2002M200-81 | Top, Main (wht) (Replaces: 74010895) | 10 |
|
- | ||||
| 10 | W10769823 | Clock/overlay (wht) (Replaces: 74010672) | 10 |
|
Immediately | $ 253.24 | |||
| 11 | 74010846 | Shield, Control | 10 |
|
- | ||||
| 12 | WPW10345410 | Element, Surface (8``) (Replaces: 74007156) | 10 |
|
Immediately | $ 165.96 | |||
| 13 | WPW10259868 | Element, Surface (6``) (Replaces: 74007157) | 10 |
|
Immediately | $ 112.28 | |||
| 14 | WP74008947 | Knob (wht/chr) (Replaces: 74008947) | 10 |
|
$ 18.70 | ||||
| 15 | WP7101P498-60 | Screw (6abx.25-zn) (Replaces: 74003357) | 10 |
|
$ 6.74 | ||||
| 16 | 74005759 | Tube, Vent (upr) | 10 |
|
- | ||||
| 17 | WPW10196405 | Bowl, Drip (8``-chr) (Replaces: 74001213) | 15 |
|
Immediately | $ 15.56 | |||
| 17 | W10291024 | Bowl, Drip (8`` Gry-solid) (Replaces: 74003441) | 10 |
|
Immediately | $ 49.90 | |||
| 18 | WPW10196406 | Bowl, Drip (6``-chr) (Replaces: 74001212) | 15 |
|
Immediately | $ 12.05 | |||
| 18 | W10291024 | Bowl, Drip (6`` Gry-solid) (Replaces: 74003440) | 10 |
|
Immediately | $ 49.90 | |||
| 19 | WP74010226 | Switch, Rocker W/shield (wht) (Replaces: 74010226) | 10 |
|
$ 86.45 | ||||
| 20 | 74006046 | Bottom, Burner Box | 10 |
|
- | ||||
| 21 | 3801F881-51 | Bracket, Burner Box (Replaces: 74010894) | 10 |
|
- |
