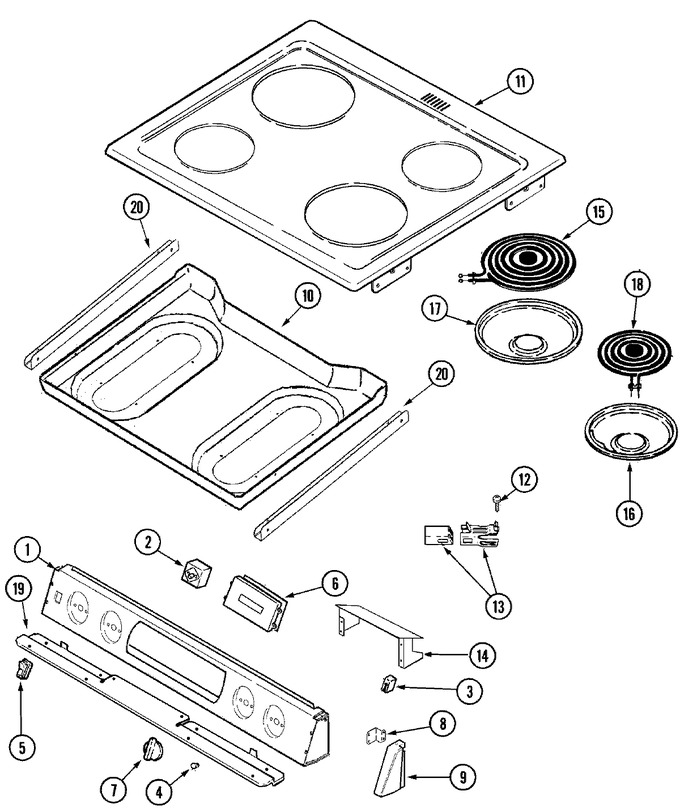

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Door/drawer
03 - Oven/base
04 - Top Assembly
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74004356 | Panel, Control (blk) | 10 |
|
- | ||||
| 2 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 2 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 3 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 4 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 5 | 74003363 | Switch, Rocker (blk) | 10 |
|
- | ||||
| 6 | 74009306 | Clock W/overlay (blk) | 27 |
|
- | ||||
| 6 | 74004332 | Clock W/overlay (blk) | 10 |
|
- | ||||
| 6 | 74007369 | Lock, Purse | 10 |
|
- | ||||
| 7 | 74003612 | Knob (blk) | 10 |
|
$ 16.42 | ||||
| 8 | 74005671 | Bracket, End Cap | 17 |
|
- | ||||
| 8 | W11233072 | Screw (Replaces: 74004208) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 74004186 | Bracket, End Cap | 10 |
|
- | ||||
| 9 | 74004595 | Cap, End (rt-blk) | 11 |
|
- | ||||
| 9 | 74004596 | Cap, End (lt-blk) | 11 |
|
- | ||||
| 9 | 74004321 | Cap, End (lt-blk) | 10 |
|
- | ||||
| 9 | WP98008545 | Screw (8abx1/2``-blk) (Replaces: 790448) | 10 |
|
$ 15.94 | ||||
| 9 | 74004816 | Cap, End (blk-lt) | 13 |
|
- | ||||
| 9 | 74004813 | Cap, End (blk-rt) | 13 |
|
- | ||||
| 9 | 74004322 | Cap, End (rt-blk) | 10 |
|
- | ||||
| 10 | 74006046 | Bottom, Burner Box | 21 |
|
- | ||||
| 10 | W10124350 | Not Required Part Or See Note Nut Not Required | 21 |
|
- | ||||
| 10 | 7103P125-60 | Nut | 10 |
|
- | ||||
| 10 | 74004251 | Bottom, Burner Box | 10 |
|
- | ||||
| 11 | 74004357 | Top, Main (blk) | 10 |
|
- | ||||
| 11 | 74007602 | Top, Main (blk) | 17 |
|
- | ||||
| 12 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| 13 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 10 |
|
Immediately | $ 28.45 | |||
| 14 | 74004316 | Insulator, Fiber Board | 10 |
|
- | ||||
| 15 | WPW10345410 | Element, Surface (8``) (Replaces: 74007156) | 25 |
|
Immediately | $ 165.96 | |||
| 15 | WP12001560 | Element, Surface (8``) (Replaces: 74004089) | 10 |
|
$ 172.17 | ||||
| 16 | W10290353RW | Bowl, Drip (6`` Blk) (Replaces: Y04100392) | 10 |
|
Immediately | $ 19.27 | |||
| 17 | WPW10290350 | Bowl, Drip (8`` Blk) (Replaces: Y04100393) | 10 |
|
Immediately | $ 15.25 | |||
| 18 | WPW10259868 | Element, Surface (6``) (Replaces: 74007157) | 25 |
|
Immediately | $ 112.28 | |||
| 18 | WP12001559 | Element, Surface (6``) (Replaces: 74004090) | 10 |
|
$ 141.24 | ||||
| 19 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 19 | 74004185 | Support, Control Panel | 10 |
|
- | ||||
| 20 | 74005822 | Bracket, Support | 21 |
|
- | ||||
| 20 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 21 |
|
Immediately | $ 12.62 | |||
| 21 | 74009285 | Harness, Main | 27 |
|
- | ||||
| 21 | 74004786 | Harness, Relay | 27 |
|
- | ||||
| 21 | WP74003482 | Relay, Auxillary (Replaces: 74003482) | 27 |
|
$ 153.21 | ||||
| 21 | 74004335 | Harness, Sensor & Lock | 10 |
|
- | ||||
| 21 | 12001323 | Wire/terminal Kit | 10 |
|
- | ||||
| 21 | 74005674 | Harness, Sensor & Lock | 19 |
|
- | ||||
| 22 | 74004346 | Manual, Use & Care | 10 |
|
- | ||||
| 22 | 71002782 | Guide, Cooking | 10 |
|
- | ||||
| 23 | 16010161 | Manual, Srvc Elec/gas Range | 10 |
|
- |
