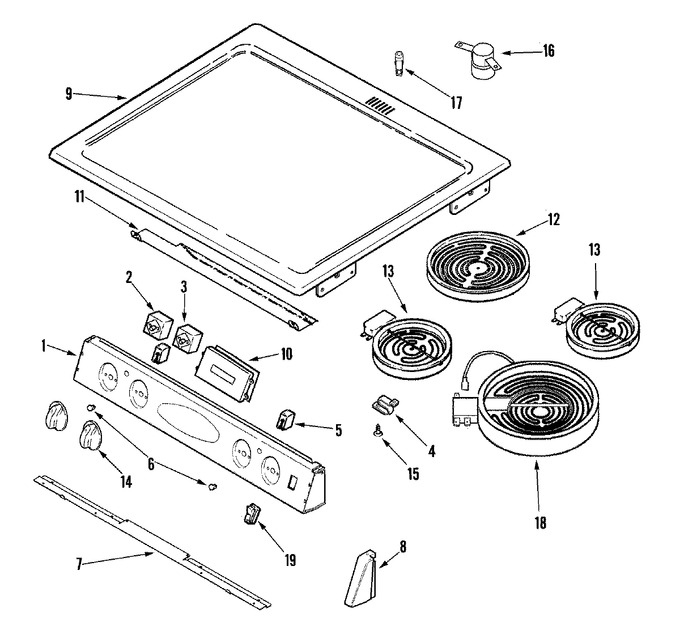

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74011083		Panel, Control (wht)	10	Appelez-nous	-
2	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	10		Immediately	$ 57.78
2	WP7101P309-60		Screw   (Replaces: 7101P309-60)	10		Immediately	$ 6.26
3	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	10		Immediately	$ 35.10
3	WP7101P309-60		Screw   (Replaces: 7101P309-60)	10		Immediately	$ 6.26
4	74007845		Support, Element	10	Appelez-nous	-
5	WP74004153		Light, Indicator   (Replaces: 74004153)	10		Immediately	$ 8.02
6	WP7730P011-60		Lens, Indicator Light   (Replaces: 7730P011-60)	10			$ 5.16
7	74004785		Support, Manifold Panel	10	Appelez-nous	-
8	74004822		Cap, End (wht-lt)	10	Appelez-nous	-
8	74004821		Cap, End (wht-rt)	10	Appelez-nous	-
9	74010668		Top Assembly (wht)	10	Appelez-nous	-
10	W10769823		Clock/overlay (wht)   (Replaces: 74010672)	10		Immediately	$ 253.24
11	74010846		Shield, Control	10	Appelez-nous	-
12	W10823696		Element (2500w)   (Replaces: 74009034)	10		Immediately	$ 192.83
13	W10823711		Element (1200w)   (Replaces: 74008568)	10		Immediately	$ 183.95
14	WP74008947		Knob (wht/chr)   (Replaces: 74008947)	10			$ 18.70
15	WP7101P498-60		Screw (6abx.25-zn)   (Replaces: 74003357)	10			$ 6.74
16	74005759		Tube, Vent (upr)	10	Appelez-nous	-
17	74011799		Light, Indicator	10	Appelez-nous	-
18	74009082		Element (12``)	10			$ 199.46
19	WP74010226		Switch, Rocker W/shield (wht)   (Replaces: 74010226)	10			$ 86.45
