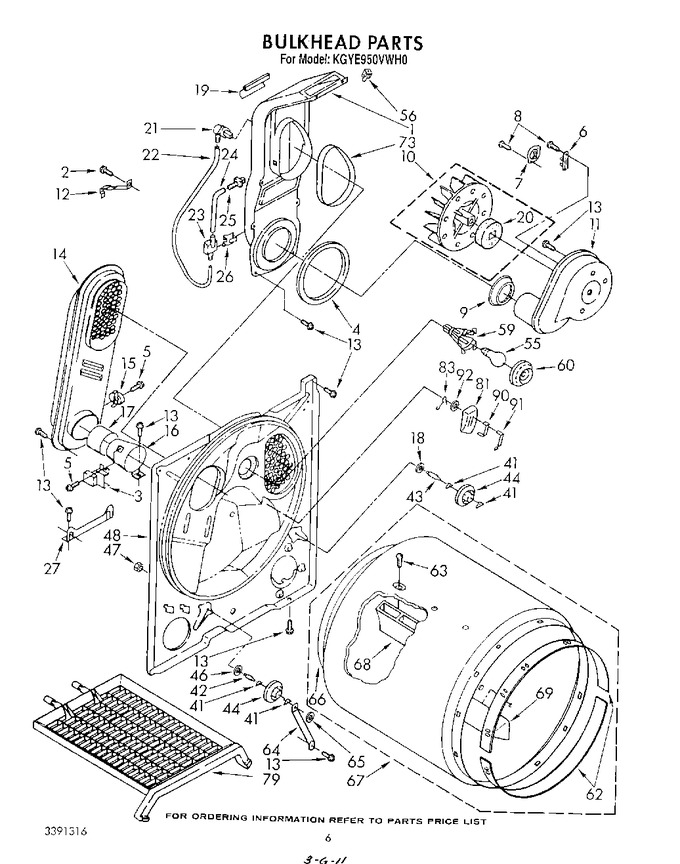

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	349242		Lint Chute Assembly		Appelez-nous	-
2	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.07
3	WP338906		Radiant, Sensor   (Replaces: 338906)			Immediately	$ 46.72
4	W11415783		Seal, Lint Chute   (Replaces: 347139)			Immediately	$ 16.41
5	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
6	WP3392519		Thermal Fuse   (Replaces: 694511)			Immediately	$ 22.46
7	WP8577274		Thermistor   (Replaces: 772546)			Immediately	$ 39.25
8	WP965173		Screw, 8-18 X 3/8   (Replaces: 695239)			Immediately	$ 9.65
9	W11233063		Shield, Exhaust   (Replaces: 696302)				$ 20.06
10	WP694089		Wheel, Blower   (Replaces: 695499)			Immediately	$ 33.89
11	695081		Housing, Blower		Appelez-nous	-
12	279771		Clip   (Replaces: 337272)				$ 12.90
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
14	279900		Box, Heater   (Replaces: 685458)				$ 309.92
15	660036		Thermostat, 205of (96oc) 338471 (alt.) 341196 (alt.)		Appelez-nous	-
16	279900		Funnel, Burner   (Replaces: 347389)				$ 309.92
17	279900		Heater Element   (Replaces: 348516)				$ 309.92
18	WP3388703		Washer-support   (Replaces: 3388703)				$ 6.72
19	686770		Support Protector		Appelez-nous	-
20	694630		Seal, Blower		Appelez-nous	-
21	4338643CP		Tap, Downstream   (Replaces: 339625)		Appelez-nous	-
22	339893		Tubing Downstream		Appelez-nous	-
23	696371		Sensor, Pressure		Appelez-nous	-
24	339892		Tubing Upstream		Appelez-nous	-
25	339624		Tap Upstream		Appelez-nous	-
26	339745		Clip, Switch		Appelez-nous	-
27	348484		Support, Box		Appelez-nous	-
41	WPW10512946		Tri Ring (4)   (Replaces: 690997)			Immediately	$ 7.92
42	WPW10359270		Shaft, L.h.   (Replaces: 347364)			Immediately	$ 65.44
43	WPW10359269		Shaft, R.h.   (Replaces: 339489)			Immediately	$ 42.57
44	WPW10314173		Support, Roller   (Replaces: 3388342)			Immediately	$ 25.65
46	WP348197		Washer, Support   (Replaces: 348197)				$ 6.47
47	120377		Nut, 3/8-16		Appelez-nous	-
48	685821		Bulkhead		Appelez-nous	-
55	8009		Bulb   (Replaces: 311255)			Immediately	$ 16.80
56	98460		Nut, Push-in (2)				$ 12.07
59	691034		Socket Assembly		Appelez-nous	-
60	341165		Lens, Drum Light		Appelez-nous	-
62	279441		Ring, Bearing   (Replaces: 692526)			Immediately	$ 59.60
63	690372		Screw, 11-16 X 7/8		Appelez-nous	-
64	W11684613		Bracket, Shaft   (Replaces: 348944)				$ 18.85
65	WP90296		Clip   (Replaces: 90296)				$ 7.07
66	279408		Seal, Rear   (Replaces: 347885)				$ 66.22
67	W10899578		Drum Assembly   (Replaces: 695587)				$ 321.89
68	WP692490		Baffle, Drum (long) (2)   (Replaces: 692490)				$ 143.34
69	WP3403636		Baffle, Drum (short) (1)   (Replaces: 692491)				$ 124.79
73	WP339956		Seal   (Replaces: 339956)			Immediately	$ 7.77
79	692990		Dry Rack Assembly		Appelez-nous	-
81	279366		Pad, Sensor   (Replaces: 348861)				$ 86.27
83	WP342267		Clip, Sensor (2)   (Replaces: 342267)				$ 6.98
90	WP348859		Electrode, Inside   (Replaces: 348859)				$ 7.18
91	WP348860		Electrode, Outside   (Replaces: 348860)				$ 7.25
92	WP298877		Washer, Insulating   (Replaces: 298877)				$ 20.32
