02 - Top And Console, Lit/optional
03 - Cabinet
04 - Bulkhead

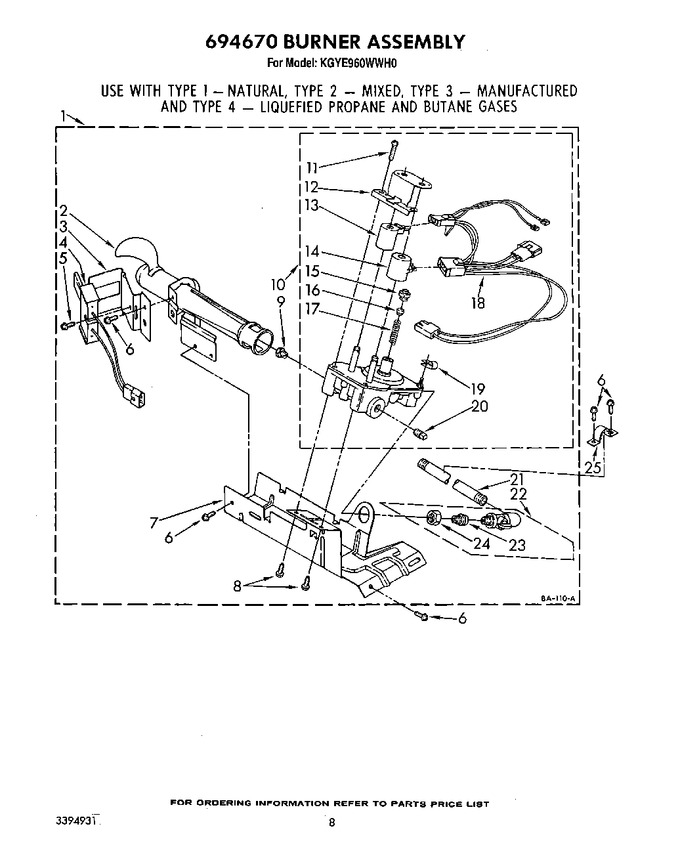

05 - 694670 Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 694670 | Burner Assembly 60 H.z. (type 1, 2, & 3) |
|
- | |||||
| 2 | WP693140 | Tube, Burner (Replaces: 688617) |
|
$ 161.89 | |||||
| 3 | WP694298 | Bracket, Ignitor (Replaces: 694298) |
|
$ 23.33 | |||||
| 4 | 279311 | Ignitor (Replaces: 660991) |
|
Immediately | $ 71.01 | ||||
| 4 | 279311 | (alt.) (Replaces: 686590) |
|
Immediately | $ 71.01 | ||||
| 5 | WPW10366705 | Lock Screw & Washer (8-32 X 5/8) (Replaces: 686953) |
|
$ 6.75 | |||||
| 6 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 7 | 693986 | Base, Burner |
|
- | |||||
| 8 | WP90767 | Screw, 8-32 X 3/8 (2) (Replaces: 339527) |
|
Immediately | $ 7.04 | ||||
| 9 | WP229742 | Orifice, Burner (type 4 (butane)) (Replaces: 229742) |
|
$ 31.37 | |||||
| 9 | 15775 | Orifice, Burner (type 2) |
|
- | |||||
| 9 | WP234826 | Orifice, Burner (type 1) (Replaces: 234826) |
|
$ 33.66 | |||||
| 9 | WP234868 | Orifice, Burner (type 4 (propane)) (Replaces: 234868) |
|
$ 31.37 | |||||
| 9 | 15419 | Orifice, Burner (type 3) |
|
- | |||||
| 10 | 279923 | Valve, 60 Hz. (Replaces: 694054) |
|
Immediately | $ 257.43 | ||||
| 11 | 694421 | Screw, Bracket Mounting (8-32 X 1/2) (2) |
|
- | |||||
| 12 | 694538 | Bracket, Coil |
|
$ 72.05 | |||||
| 13 | 279834 | Coil, 60 Hz. (2 Terminal) (main) (Replaces: 694540) |
|
Immediately | $ 29.57 | ||||
| 14 | 279834 | Coil, 60 Hz. (split) (3 Terminal) (pilot Position) (Replaces: 694539) |
|
Immediately | $ 29.57 | ||||
| 15 | WP694424 | Leak Limiter (Replaces: 694424) |
|
$ 31.11 | |||||
| 16 | WP694423 | Screw, Regulator Adjustment (Replaces: 694423) |
|
$ 6.26 | |||||
| 17 | WP694422 | Spring, Regulator (Replaces: 694422) |
|
$ 21.84 | |||||
| 18 | WP3401850 | Harness, Wiring (complete) (Replaces: 694426) |
|
$ 218.68 | |||||
| 19 | 694510 | Clip, Harness |
|
- | |||||
| 20 | W10295523 | Plug, Pipe (Replaces: 239822) |
|
- | |||||
| 21 | 233273 | Pipe, Gas Supply |
|
- | |||||
| 22 | 345062 | Valve & Union, Shut-off |
|
- | |||||
| 23 | 3393767 | Pipe, Tail (Replaces: 233077) |
|
$ 123.97 | |||||
| 24 | 233076 | Nut, Compression |
|
$ 43.19 | |||||
| 25 | 49572A | Conversion Kit (type 1, 2 & 3 To Type 4) (l.p.g.) (Replaces: 694572) |
|
Immediately | $ 32.57 | ||||
| 25 | 341029 | Clamp, Pipe |
|
- | |||||
| 25 | 279243 | Conversion Kit Type 1 (natural) To Type 3 (manufactured) |
|
- |
