SELECT A DIAGRAM

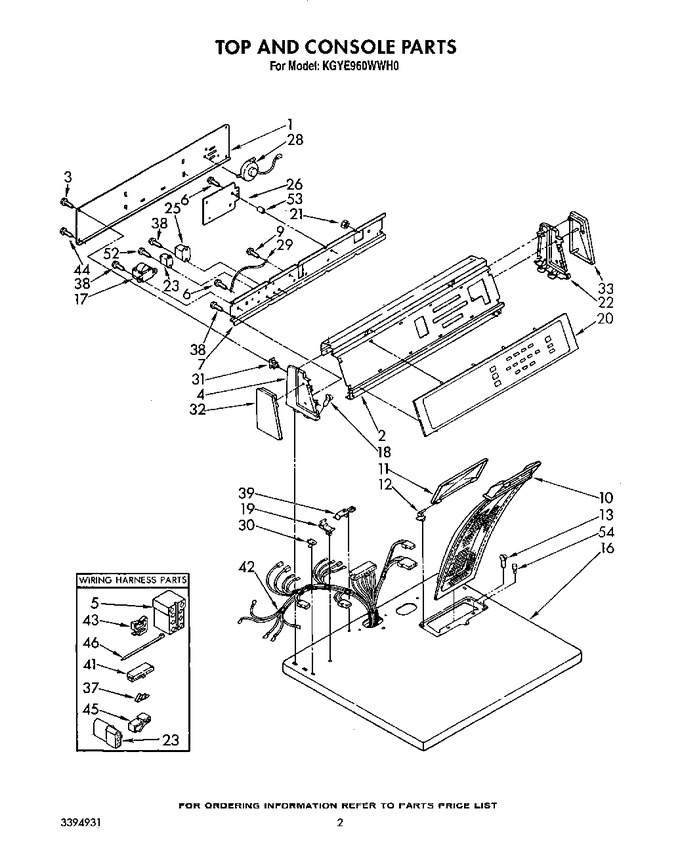

02 - Top And Console, Lit/optional


03 - Cabinet


04 - Bulkhead


05 - 694670 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3388889		Panel, Rear Console		Appelez-nous	-
2	3394789		Panel, Control		Appelez-nous	-
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.47
4	3354640		Cap, End (l.h.)		Appelez-nous	-
5	3387626		Receptacle, (natural)		Appelez-nous	-
6	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
7	3394065		Bracket, Control		Appelez-nous	-
9	WP3390631		Screw, Ground   (Replaces: 339554)				$ 7.04
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 33.49
11	691205		Cover, Lint Screen		Appelez-nous	-
12	WPW10044480		Hinge, Cover (l.h.)   (Replaces: 691194)				$ 6.95
12	WPW10044470		Hinge, Cover (r.h.)   (Replaces: 691193)				$ 6.95
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 12.65
16	3393375		Top (almond)		Appelez-nous	-
16	3393374		Top (white)		Appelez-nous	-
17	660987		Transformer		Appelez-nous	-
18	WP388326		Screw, 8-18 (2)   (Replaces: 64211)				$ 7.30
19	358473		Stop, Push-in (2)				$ 5.84
20	3394782		Module, Touch		Appelez-nous	-
21	3407038		Nut, Lock		Appelez-nous	-
22	3354646		Cap, End (r.h.)		Appelez-nous	-
23	691707		Receptacle, 3-way		Appelez-nous	-
25	696819		Motor Relay		Appelez-nous	-
26	3407034		Microcomputer Assembly		Appelez-nous	-
28	387973		Speaker & Housing		Appelez-nous	-
29	690853		Wire, Ground		Appelez-nous	-
30	358472		Nut, Push-in (2)		Appelez-nous	-
31	689559		Clip, Push-on (4)		Appelez-nous	-
32	3356028		Trim, End Cap (l.h.)		Appelez-nous	-
33	3356049		Trim, End Cap (r.h.)		Appelez-nous	-
37	60279		Terminal		Appelez-nous	-
38	WP90767		Screw, 8a X 3/8   (Replaces: 3348629)			Immediately	$ 7.04
39	357144		Clip, Wire (tech Sheet/top)		Appelez-nous	-
41	60278		Connector				$ 231.17
42	3394904		Harness, Wiring		Appelez-nous	-
43	688412		Clip, Harness (rear Bulkhead Area)		Appelez-nous	-
44	WP489069		Screw, Hex Washer Head   (Replaces: 693994)			Immediately	$ 7.07
45	689180		Clip, Harness Retainer (door Switch Wires)		Appelez-nous	-
46	WPW10339879		Tie, Wire (console Harness Area)   (Replaces: 685963)				$ 7.11
52	98831		Screw Mounting		Appelez-nous	-
53	313087		Support, Board		Appelez-nous	-
54	297535		Bumper, Lint Lid		Appelez-nous	-
	LIT3393139		Instructions, Installation		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	285365		Toast		Appelez-nous	-
	261890		Harvest Wheat		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
	LIT3394905		Wiring Diagram		Appelez-nous	-
	LIT3394931		List, Service Parts		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	LIT3388652		Label, Operating Instructions		Appelez-nous	-
	LIT3392981		Use & Care Guide		Appelez-nous	-
	LIT3387320		Guide, Dryer		Appelez-nous	-
	LIT3387423		Tech Sheet (service Information)		Appelez-nous	-
	285368		Platinum (uncut)		Appelez-nous	-
	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	261891		Harvest Wheat (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
	350941		Leveler (thinner)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
