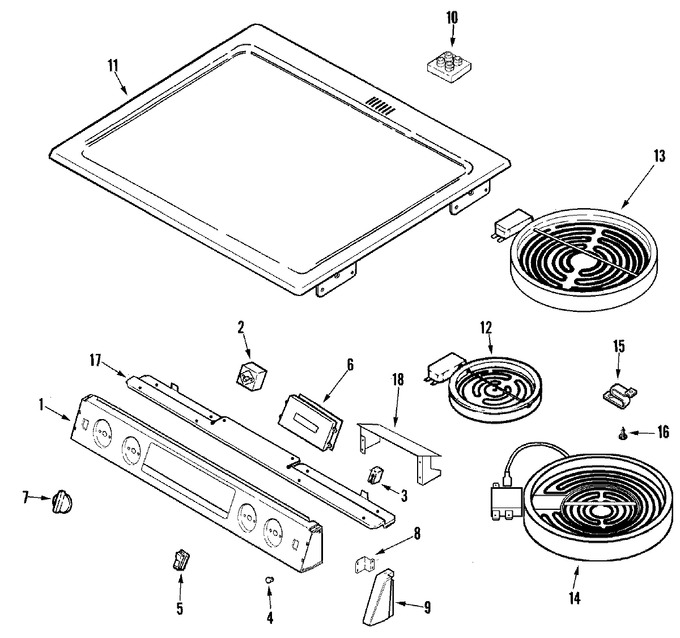

01 - Body
02 - Control Panel/top Assembly
03 - Door/drawer
04 - Oven/base
05 - Supplimental Information
06 - Wiring Information
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74004328 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 2 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 2 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 2 | WP74003122 | Switch, Infinite (dual) (Replaces: 74003122) | 10 |
|
Immediately | $ 73.53 | |||
| 3 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 4 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 5 | 7403P200-60 | Switch, Rocker (wht) | 10 |
|
- | ||||
| 6 | 74007496 | Clock, W/overlay (wht) | 10 |
|
- | ||||
| 6 | 74007369 | Lock, Purse | 10 |
|
- | ||||
| 7 | WP74003611 | Knob (wht) (Replaces: 74003611) | 10 |
|
$ 17.45 | ||||
| 8 | W11233072 | Screw (Replaces: 74004208) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 74005671 | Bracket, End Cap | 10 |
|
- | ||||
| 9 | 74004814 | Cap, End (wht-rt) | 10 |
|
- | ||||
| 9 | 74004817 | Cap, End (wht-lt) | 10 |
|
- | ||||
| 9 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 10 |
|
$ 11.89 | ||||
| 10 | 74009458 | Light, Indicator | 15 |
|
- | ||||
| 10 | 74004181 | Light, Indicator | 10 |
|
- | ||||
| 11 | 74004343 | Top, Main (wht) | 10 |
|
- | ||||
| 12 | W10823704 | Element W/limiter (6``) (Replaces: 74005476) | 10 |
|
Immediately | $ 309.01 | |||
| 12 | W10823711 | Element (1200w) (Replaces: 74008568) | 14 |
|
Immediately | $ 183.95 | |||
| 13 | W10823707 | Element W/limiter (8``) (Replaces: 74005477) | 10 |
|
Immediately | $ 316.13 | |||
| 13 | W10823697 | Element (2200w) (Replaces: 74008569) | 14 |
|
$ 326.21 | ||||
| 14 | W10823709 | Element, Dual (Replaces: 74008570) | 14 |
|
Immediately | $ 172.88 | |||
| 14 | W10823709 | Element, Dual (w/limiter) (Replaces: 74004556) | 10 |
|
Immediately | $ 172.88 | |||
| 15 | 74003072 | Support, Ceramic Element | 10 |
|
- | ||||
| 16 | WP7101P498-60 | Screw (6abx.25-zn) (Replaces: 74003357) | 10 |
|
$ 6.74 | ||||
| 17 | 74004785 | Support, Manifold Panel | 10 |
|
- | ||||
| 17 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 18 | W11233072 | Screw (Replaces: 7101P147-60) | 10 |
|
Immediately | $ 12.62 | |||
| 18 | 74004316 | Insulator, Fiber Board | 10 |
|
- |
