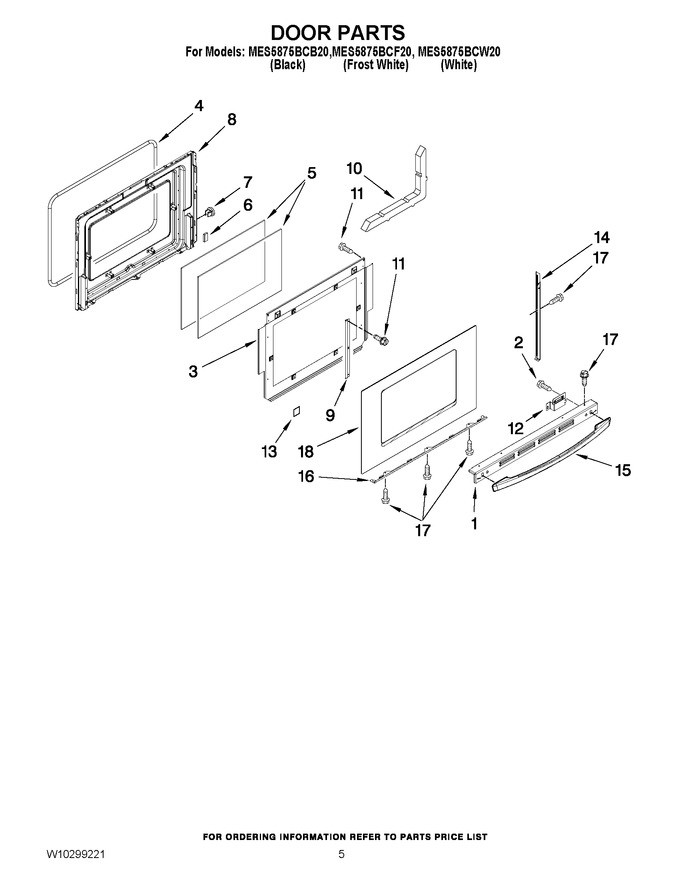

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3608F141-71		Trim, Door Top (white)				$ 98.12
1	3608F141-70		Trim, Door Top (black)				$ 96.37
2	WP74006515		Screw, Handle   (Replaces: 7101P681-60)				$ 7.29
3	3601F373-51		Baffle, Retainer				$ 244.22
4	WPW10162384		Seal, Door   (Replaces: W10162384)			Immediately	$ 77.61
5	74003645		Glass, Inner   (Replaces: 7902P436-60)			Immediately	$ 162.53
6	WP74005546		Spacer, Rubber   (Replaces: 8010P130-60)				$ 9.48
7	WP74001574		Nut, Snap   (Replaces: 7103P141-60)			Immediately	$ 9.91
8	2402W312-19		Lining, Door				$ 144.50
9	3801F886-51		Bracket, Glass				$ 38.25
10	7002P246-60		Insulation, Door				$ 58.49
11	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
12	3801F831-45		Bracket, Handle (right)				$ 19.17
12	3801F832-45		Bracket, Handle (left)				$ 19.12
13	8010P152-60		Spacer, Rubber		Appelez-nous	-
14	WP3608F117-71		Trim, Door Side (white, Left)   (Replaces: 3608F117-71)				$ 111.43
14	WP3608F116-71		Trim, Door Side (white, Right)   (Replaces: 3608F116-71)				$ 112.01
14	3608F117-70		Trim, Door Side (black, Left)				$ 49.73
14	3608F116-70		Trim, Door Side (black, Right)				$ 49.75
15	WP74011767		Handle, Door (black)   (Replaces: 7701P516-60)				$ 225.61
15	WP74011768		Handle, Door (white)   (Replaces: 7701P517-60)			Immediately	$ 194.06
16	WP3807F708-71		Trim, Door Bottom (white)   (Replaces: 3807F708-71)				$ 144.83
16	3807F708-70		Trim, Door Bottom (black)				$ 63.97
17	WP98008545		Screw, Trim   (Replaces: 7101P633-60)				$ 15.94
18	7902P736-60		Panel, Outer Door (white)		Appelez-nous	-
18	7902P797-60		Panel, Outer Door (black)		Appelez-nous	-
