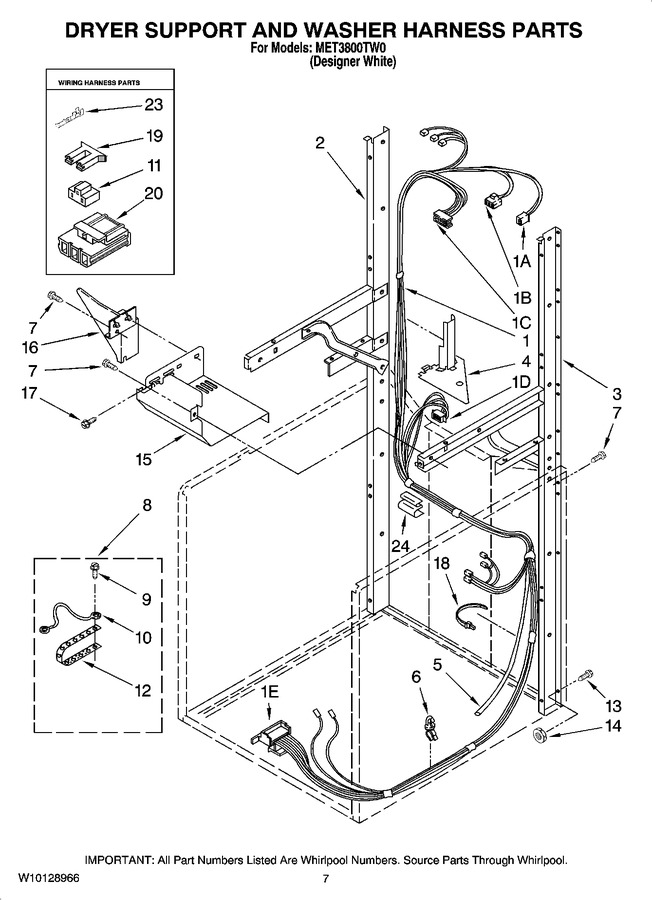

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10135956 |
|
Harness - Washer |
|
Appelez-nous
|
- |
|
|
|
| 2 |
3388851 |
|
Channel Assembly (left Hand Side) |
|
|
|
$ 288.73 |
|
|
| 3 |
3388850 |
|
Channel Assembly (right Hand Side) |
|
|
|
$ 289.31 |
|
|
| 4 |
3390609 |
|
Shield, Harness |
|
Appelez-nous
|
- |
|
|
|
| 5 |
W10834213 |
 |
Hose, Pressure Switch (Replaces: 8545438) |
|
|
Immediately |
$ 28.51 |
|
|
| 6 |
2219077 |
|
Clip, Harness |
|
|
|
$ 55.06 |
|
|
| 7 |
WP681414 |
 |
Screw, 10-16 X 1/2 (Replaces: 343641) |
|
|
Immediately |
$ 7.07 |
|
|
| 8 |
685463 |
|
Kit, Grounding |
|
Appelez-nous
|
- |
|
|
|
| 9 |
WP90767 |
 |
Screw (Replaces: 8533971) |
|
|
Immediately |
$ 7.04 |
|
|
| 10 |
685449 |
|
Wire |
|
Appelez-nous
|
- |
|
|
|
| 11 |
3401144 |
|
Connector (pts) Relay |
|
|
|
$ 10.98 |
|
|
| 12 |
22965 |
|
Strap, Grounding |
|
Appelez-nous
|
- |
|
|
|
| 13 |
3400300 |
|
Bolt, 5/16-18 X 1/2 (4) |
|
Appelez-nous
|
- |
|
|
|
| 14 |
3393930 |
|
Nut, Hex (4) |
|
Appelez-nous
|
- |
|
|
|
| 15 |
W11108181 |
|
Shield, Front (Replaces: 3394350) |
|
|
|
$ 64.83 |
|
|
| 16 |
3390336 |
|
Shield, Thermostat |
|
Appelez-nous
|
- |
|
|
|
| 17 |
WP308685 |
 |
Screw, 10-16x1/2 (Replaces: 3393008) |
|
|
Immediately |
$ 7.08 |
|
|
| 18 |
3391249 |
|
Clip, Harness (2) |
|
Appelez-nous
|
- |
|
|
|
| 19 |
3354925 |
|
Connector, H-pod |
|
Appelez-nous
|
- |
|
|
|
| 20 |
3360056 |
|
Connector, Pressure Switch |
|
|
|
$ 14.35 |
|
|
| 23 |
94613 |
|
Terminal (male) |
|
Appelez-nous
|
- |
|
|
|
| 23 |
WP94614 |
 |
Terminal (female) (Replaces: 94614) |
|
|
|
$ 6.90 |
|
|
| 24 |
63523 |
|
Protector, Harness |
|
|
|
$ 169.95 |
|
|
| 1A |
3350130 |
|
Plug, 3 Way |
|
|
|
$ 11.72 |
|
|
| 1B |
3347243 |
|
Connector, 5 Way |
|
Appelez-nous
|
- |
|
|
|
| 1C |
W10876590 |
 |
Block, Disconnect - Timer (Replaces: 352089) |
|
|
|
$ 11.48 |
|
|
| 1D |
3350211 |
|
Receptacle, 3 Way |
|
Appelez-nous
|
- |
|
|
|
| 1E |
WP62505 |
 |
Block, Disconnect (Replaces: 62505) |
|
|
|
$ 21.35 |
|
|
