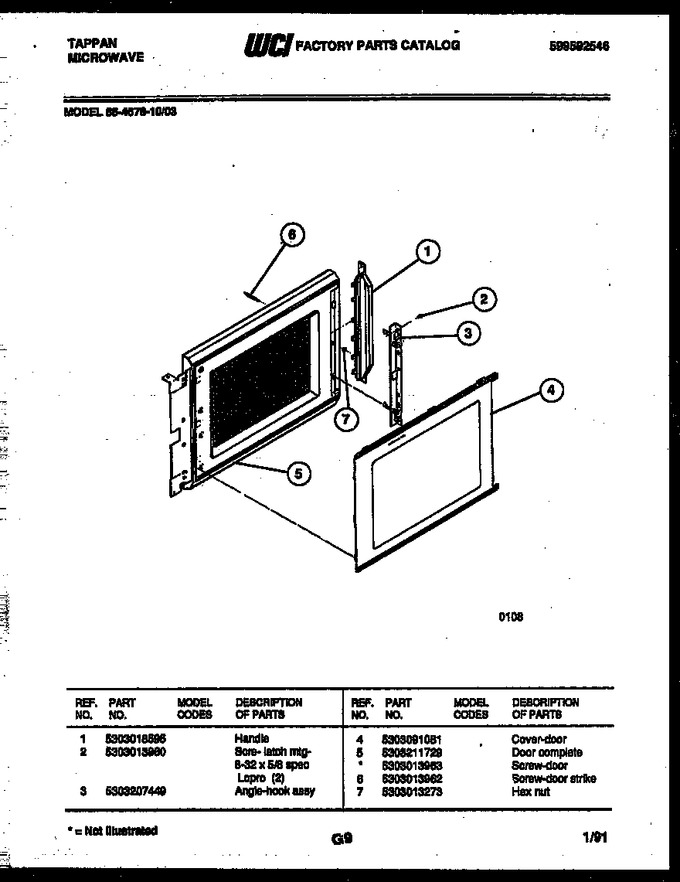

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Door Parts
04 - Power Control
05 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303018595 | Handle |
|
- | |||||
| 2 | 5303013960 | Scre-latch Mtg-8-32 X 5/8 Spec Lopro (2) |
|
- | |||||
| 3 | 5303207449 | Angle Hook Assy |
|
- | |||||
| 4 | 5303091081 | Cover-door |
|
- | |||||
| 5 | 5303211729 | Door-complete |
|
- | |||||
| 6 | 5303013962 | Screw-door Strike |
|
- | |||||
| 7 | 5303013273 | Hex Nut |
|
- | |||||
| 5A | 5303013963 | Screw-door (non-illustrated) |
|
- |
