SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door


04 - Internal Controls


05 - Oven/base


06 - Wiring Information (mew5530aax)

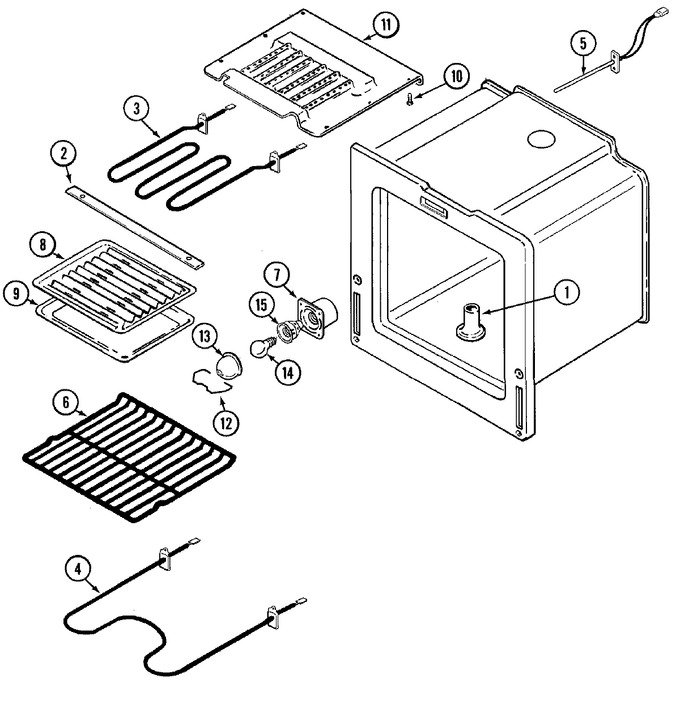

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
1	74004097		Tube, Vent	10	Appelez-nous	-
2	W11772394		Screw   (Replaces: 7101P345-60)	10		Immediately	$ 10.94
2	74003563		Support, Broil Element	10	Appelez-nous	-
3	74004041		Element, Broil (6 Pass)	10	Appelez-nous	-
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	74004039		Element, Bake	10			$ 81.23
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
5	12001656		Sensor, Oven (long)   (Replaces: 74003390)	10		Immediately	$ 39.55
6	WPW10282492		Rack, Oven   (Replaces: 74001757)	10		Immediately	$ 65.15
7	74003388		Housing, Bulb	10	Appelez-nous	-
8	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
9	Y3401F02019		Pan, Broil	10	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	3601F237-47		Baffle, Broil	10	Appelez-nous	-
12	74003391		Retainer, Bulb Cover	10	Appelez-nous	-
13	74003389		Cover, Bulb	10	Appelez-nous	-
14	8009		Bulb-oven   (Replaces: 7407P103-60)	10		Immediately	$ 16.80
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
15	74003387		Receptacle, Bulb	10			$ 5.84

    View Diagram in Separate Window       Print Part List
