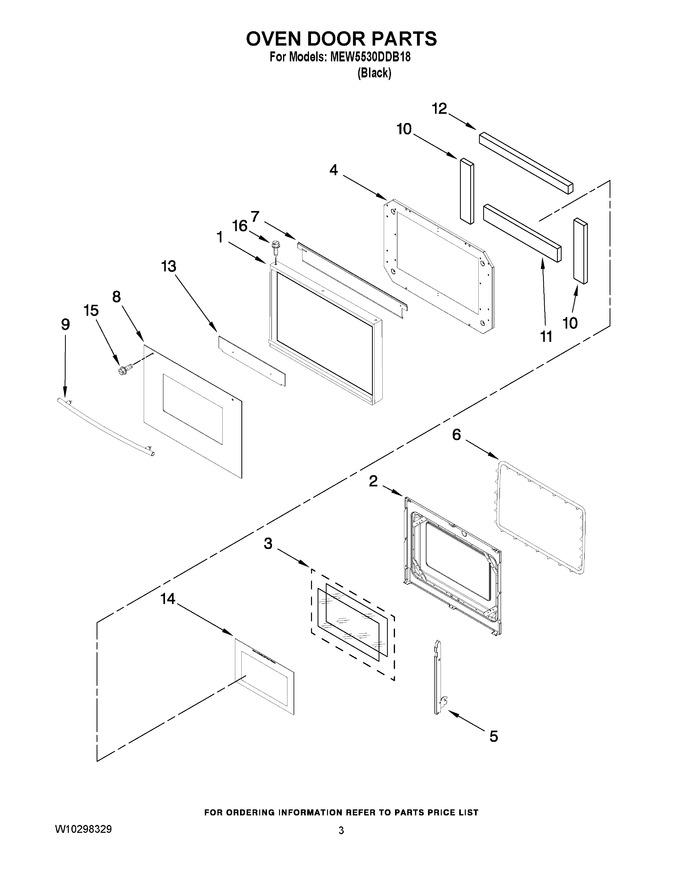

01 - Oven Parts
02 - Oven Door Parts
03 - Internal Oven Parts
04 - Control Panel Parts
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7706P565-60 | Trim, Frame Door Assy. |
|
- | |||||
| 2 | 2402W265-19 | Liner, Oven Door |
|
$ 140.03 | |||||
| 3 | 5700D868-60 | Assy., Window |
|
- | |||||
| 4 | 3804F218-51 | Retainer, Insul. |
|
- | |||||
| 5 | WP74008014 | Hinge, Door (Replaces: 7106P115-60) |
|
Immediately | $ 129.55 | ||||
| 6 | WP71001841 | Seal, Door (Replaces: 7212P061-60) |
|
Immediately | $ 160.14 | ||||
| 7 | W10205611 | Bracket, Handle |
|
$ 30.36 | |||||
| 8 | 7902P664-60 | Glass, Door (white) |
|
- | |||||
| 9 | WP74011768 | Handle, Door (Replaces: 7701P517-60) |
|
Immediately | $ 194.06 | ||||
| 10 | 7002P380-60 | Insulation, Door |
|
- | |||||
| 11 | 74008286 | Insulation, Btm (Replaces: 7002P383-60) |
|
$ 8.30 | |||||
| 12 | 74008287 | Insulation, Top (Replaces: 7002P384-60) |
|
$ 7.94 | |||||
| 13 | 3604F370-45 | Shield, Heat |
|
$ 50.46 | |||||
| 14 | 7902P711-60 | Glass, Door Inner |
|
- | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 16 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 6.47 |
