Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 7706P564-60 Trim, Frame Door Assy. Special Order $ 367.24

2 2402W265-19 Liner, Oven Door Special Order $ 140.03

3 5700M868-60 Assy., Window Special Order $ 196.67

4 3804F218-51 Retainer, Insul. Appelez-nous -
5 WP74008014 Hinge, Door   (Replaces: 7106P115-60) In-Stock Immediately $ 129.55

6 WP71001841 Seal, Door   (Replaces: 7212P061-60) In-Stock Immediately $ 160.14

7 W10205611 Bracket, Handle Special Order $ 30.36

8 7902P663-60 Glass, Door (black/stainless) Appelez-nous -
9 WP74011767 Handle, Door (black)   (Replaces: 7701P516-60) Special Order $ 225.61

10 7002P380-60 Insulation, Door Appelez-nous -
11 74008286 Insulation, Btm   (Replaces: 7002P383-60) Special Order $ 8.30

12 74008287 Insulation, Top   (Replaces: 7002P384-60) Special Order $ 7.94

13 3604F370-45 Shield, Heat Special Order $ 50.46

14 7902P711-60 Glass, Door Inner Appelez-nous -
15 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 7.04

16 WPY706189 Screw   (Replaces: 7101P427-60) In-Stock Immediately $ 6.47


    View Diagram in Separate Window     Print Icon   Print Part List

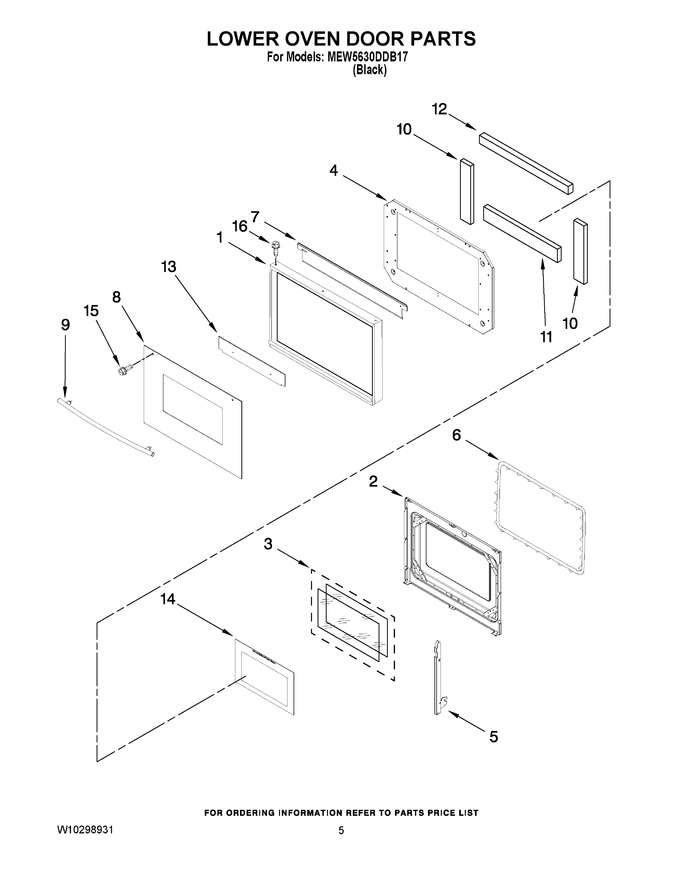

Diagram for MEW5630DDB17
