SELECT A DIAGRAM
02 - Control Panel
03 - Door Parts

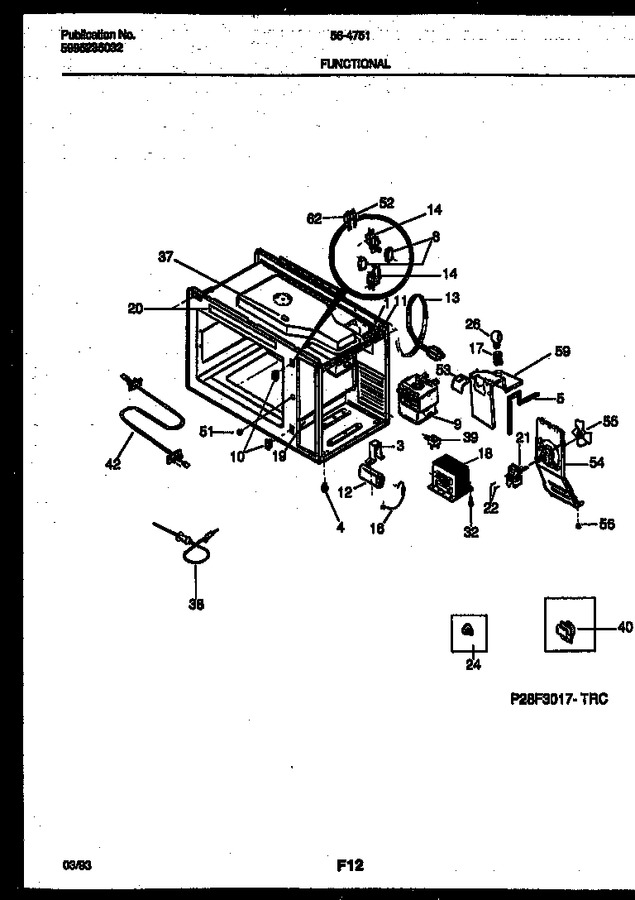

04 - Functional Parts
05 - Wrapper And Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303011670 | Fuse, 20 Amp, 250 V |
|
- | |||||
| 3 | 5303013771 | Retainer-capacitor |
|
- | |||||
| 4 | 5303295314 | Spacer, Foot, (4) |
|
- | |||||
| 5 | 5303017864 | Tape, Foam Seal, 1/4 X 1/4 In., Cut To Size |
|
- | |||||
| 8 | 5303203636 | Switch, Interlock |
|
- | |||||
| 9 | 5303206781 | Magnetron |
|
- | |||||
| 10 | 5303212767 | Bezel Latch (2) |
|
- | |||||
| 11 | 5303212769 | Bushing-fuse Holder, Strain Relief |
|
- | |||||
| 12 | 5303269608 | Capacitor |
|
- | |||||
| 13 | 317005401 | Cord-electric Power, 120 V |
|
- | |||||
| 14 | 317000702 | Bracket-switch, (2) |
|
- | |||||
| 16 | 5303269837 | Harness And Diode, Hv |
|
- | |||||
| 17 | 5303212810 | Socket-light/lamp, Oven, 120 V |
|
- | |||||
| 18 | 5303212811 | Transformer, 120v |
|
- | |||||
| 19 | 5303273954 | Seal-foam, Cut To Size |
|
- | |||||
| 20 | 5303271795 | Label, Cooking Guide, English |
|
- | |||||
| 21 | 5303922053 | Motor-fan, 120 V, Includes Motor, Fan Duct, Fan Blade, I |
|
- | |||||
| 22 | 5308014502 | Screw, 6, 32 X 1, 1/8, Fan Motor, (2) |
|
- | |||||
| 24 | 5308037665 | Plug, Button, White, Tray, (2) |
|
- | |||||
| 26 | 5303212801 | Lamp, 40 W, 120 V |
|
$ 53.13 | |||||
| 32 | 5303013944 | Screw, Hx Serr Wshr Hd, 1/4-20 X 1/2, Transformer, (2) |
|
- | |||||
| 37 | 5308037724 | Spacer |
|
- | |||||
| 38 | 5303011684 | Probe |
|
- | |||||
| 39 | 5303013702 | Receptacle Probe |
|
- | |||||
| 40 | 5303014221 | Support Rack (8) |
|
- | |||||
| 42 | 5303212785 | Element-browner |
|
- | |||||
| 51 | 5308037644 | Grommet-door |
|
- | |||||
| 52 | 317005104 | Switch-door Sensor |
|
- | |||||
| 53 | 5303269832 | Duct-air |
|
- | |||||
| 54 | 5303269833 | Duct-air, Fan |
|
- | |||||
| 55 | 5303269834 | Fan Blade |
|
- | |||||
| 56 | 5303269846 | Rivet, Plastic, Fan Air Duct, (2) |
|
- | |||||
| 59 | 5303286094 | Duct-magnetron |
|
- | |||||
| 62 | 317005103 | Switch-monitor, Snap |
|
- | |||||
| *84009 | 317000402 | Harness-wiring, Main |
|
- | |||||
| 22A | 5303013273 | Nut, Hex, 6-32 (non-illustrated) |
|
- | |||||
| 39A | 5303013283 | Nut, Receptacle Prbe (non-illustrated) |
|
- | |||||
| 42A | 317006202 | Harness-wiring, 1.3, Browner (non-illustrated) |
|
- |
