View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Oven Parts
02 - Upper Oven Door Parts
03 - Lower Oven Door Parts
04 - Internal Oven Parts

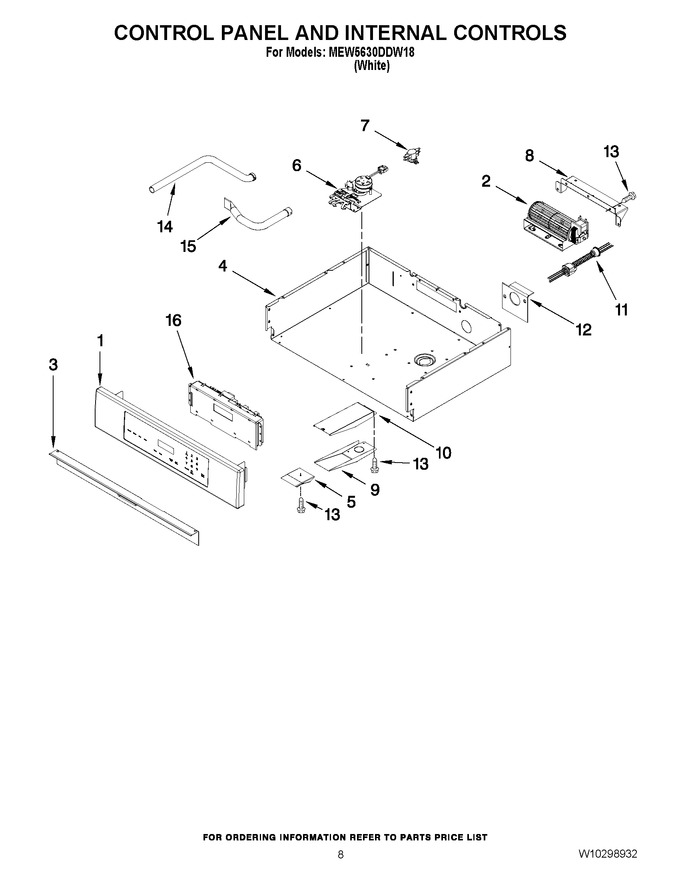

05 - Control Panel And Internal Controls
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5765M437-60 | Assembly, Control Panel (white) |
|
$ 268.84 | |||||
| 2 | 7427P079-60 | Assy., Fan Motor |
|
- | |||||
| 3 | 3608F105-70 | Trim, Control Pnl |
|
$ 35.41 | |||||
| 4 | 4026F092-51 | Panel, Top |
|
- | |||||
| 5 | 8312P232-60 | Extension, Vent |
|
- | |||||
| 6 | WPW10186996 | Switch, Door Lock (Replaces: W10186996) |
|
Immediately | $ 330.95 | ||||
| 7 | 7403P855-60 | Thermostat, Hi-limit (lower) |
|
$ 61.45 | |||||
| 7 | 74008265 | Thermostat, Hi-limit (upper) (Replaces: 7403P856-60) |
|
$ 175.16 | |||||
| 8 | 3801F936-51 | Bkt., Cooling Fan |
|
- | |||||
| 9 | 4011F438-45 | Vent, Top |
|
$ 40.41 | |||||
| 10 | 4006F169-45 | Vent, Bottom |
|
$ 27.52 | |||||
| 11 | 5700P821-60 | Assy., Wire Cable |
|
- | |||||
| 12 | 8020P048-60 | Bracket, Cable |
|
- | |||||
| 13 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 14 | 7506P404-60 | Tube, Vent Lower |
|
- | |||||
| 15 | 7506P405-60 | Tube, Vent Upper |
|
- | |||||
| 16 | 8507P321-60 | Control |
|
$ 379.85 |
