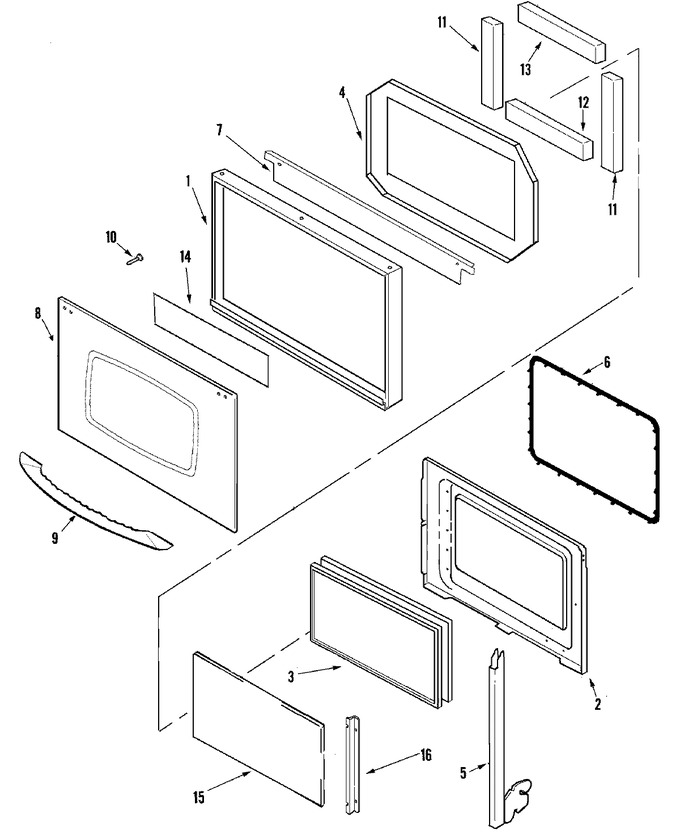

01 - Body
02 - Control Panel And Internal Controls
03 - Door
04 - Oven
05 - Supplemental Information
06 - Wiring Information
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74006750 | Frame, Door (blk) | 10 |
|
- | ||||
| 1 | WPY706189 | Screw (Replaces: Y706189) | 10 |
|
Immediately | $ 6.47 | |||
| 2 | 74005615 | Liner, Oven Door | 10 |
|
- | ||||
| 3 | 74005639 | Window Assembly | 10 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 4 | 74005638 | Retainer, Insulation | 10 |
|
- | ||||
| 5 | WP74008014 | Hinge, Door (Replaces: 74008014) | 10 |
|
Immediately | $ 129.55 | |||
| 5 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 10 |
|
$ 6.70 | ||||
| 6 | WP71001970 | Seal, Door (Replaces: 71001970) | 10 |
|
$ 156.50 | ||||
| 7 | 74008989 | Bracket, Handle | 10 |
|
- | ||||
| 7 | WP999367 | Screw (no.10 X 3/4``) (Replaces: 74004069) | 10 |
|
$ 7.07 | ||||
| 8 | 74008978 | Glass, Door (blk) | 10 |
|
- | ||||
| 9 | 74008974 | Handle, Door (blk) | 10 |
|
- | ||||
| 9 | 74011769 | Handle, Door (blk) | 16 |
|
- | ||||
| 10 | WP74006515 | Screw, Handle Mounting (Replaces: 74011674) | 16 |
|
$ 7.29 | ||||
| 10 | WP999367 | Screw (no.10 X 3/4``) (Replaces: 74004069) | 10 |
|
$ 7.07 | ||||
| 11 | 74008972 | Insulation, Door (side) | 10 |
|
- | ||||
| 12 | 74008286 | Insulation, Door (btm) | 10 |
|
$ 8.30 | ||||
| 13 | 74008973 | Insulation, Door (top) | 10 |
|
- | ||||
| 14 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 14 | 74008967 | Heat Shield, Door | 10 |
|
- | ||||
| 15 | 74008566 | Glass, Inner Door (27``) | 10 |
|
- | ||||
| 16 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 16 | 74003650 | Retainer, Glass | 10 |
|
- |
