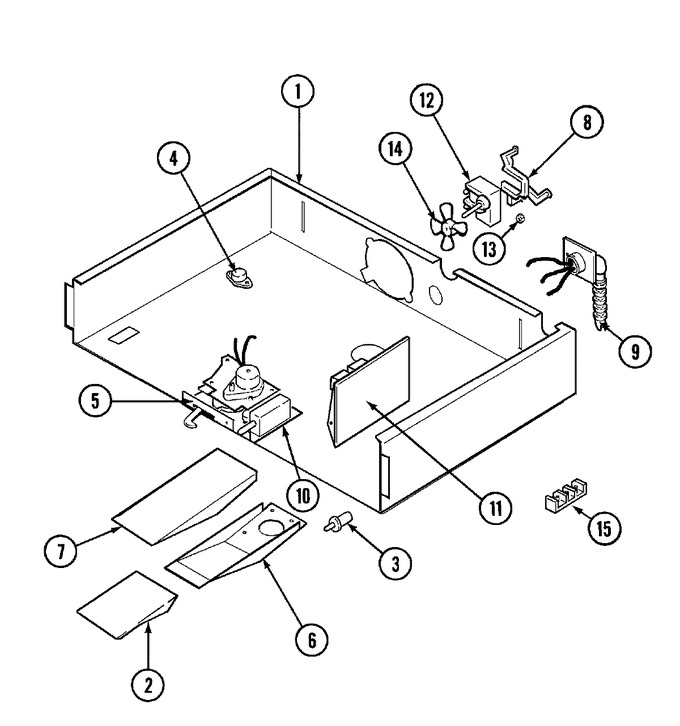

01 - Body
02 - Control Panel
03 - Door (mew6530bac)
04 - Internal Controls
05 - Oven
06 - Wiring Information (bab/baq/bas/baw/bac)
07 - Wiring Information (mew6530bcb/bcw)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74004628 | Panel, Top (inr) | 10 |
|
- | ||||
| 2 | 71001843 | Extension, Vent | 10 |
|
- | ||||
| 3 | 71001129 | Switch, Door Lock | 10 |
|
- | ||||
| 4 | WP7101P126-60 | Screw (Replaces: Y708310) | 10 |
|
Immediately | $ 6.85 | |||
| 5 | 71003294 | Latch, Door (w/light Switch) | 10 |
|
$ 157.43 | ||||
| 6 | 71001846 | Vent (btm) | 10 |
|
- | ||||
| 7 | 71001847 | Vent (top) | 10 |
|
- | ||||
| 8 | 71001853 | Bracket, Fan | 10 |
|
- | ||||
| 9 | 74004713 | Cable Assembly | 10 |
|
- | ||||
| 10 | 71002904 | Switch, Door Light | 10 |
|
$ 63.99 | ||||
| 12 | 71001851 | Fan Motor Assy. | 10 |
|
- | ||||
| 13 | WPW10339879 | Tie, Cable (Replaces: 701678) | 10 |
|
$ 7.11 | ||||
| 13 | M0282005 | Nut, Hex (Replaces: 701719) | 10 |
|
$ 7.07 | ||||
| 14 | 71001852 | Blade, Fan | 10 |
|
- |
