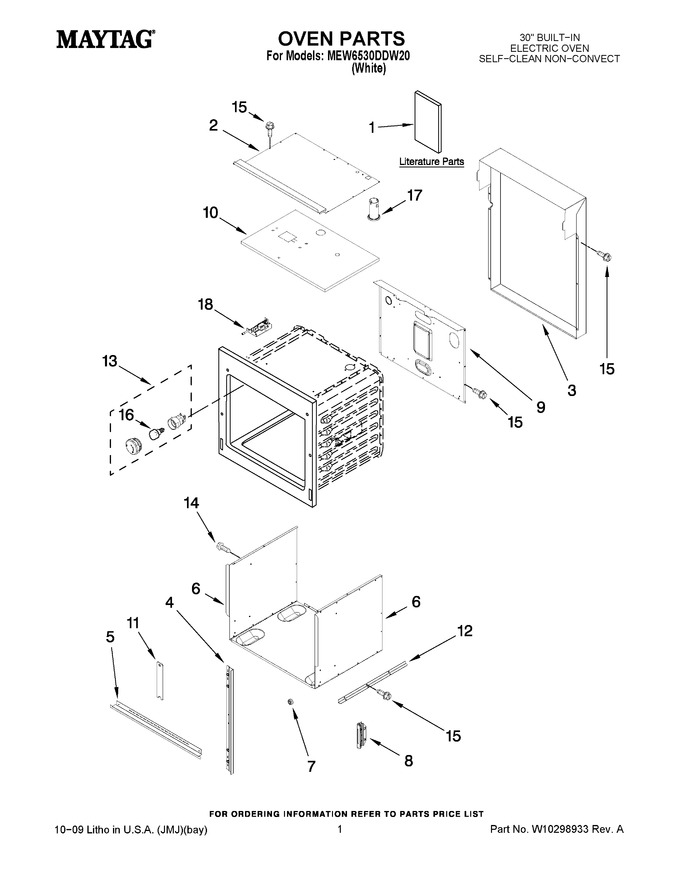

01 - Oven Parts
02 - Oven Door Parts
03 - Internal Oven Parts
04 - Control Panel Parts
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10176681 | Installation Instructions |
|
- | |||||
| 1 | W10169640 | Owners Manual |
|
- | |||||
| 1 | 9762761 | Brochure Tips (safe Cooking) (english) |
|
- | |||||
| 1 | W10065852 | Brochure, Tips Safe Cooking (french) |
|
- | |||||
| 1 | W10192628 | Wiring Diagram (english) |
|
- | |||||
| 1 | W10192629 | Wiring Diagram (french) |
|
- | |||||
| 2 | 2624F074-51 | Top, Outer |
|
$ 21.14 | |||||
| 3 | 2624F061-51 | Back, Outer |
|
- | |||||
| 4 | 7744P407-60 | Trim, Side |
|
- | |||||
| 5 | 3608F085-71 | Trim, Oven |
|
- | |||||
| 6 | 2618F222-51 | Panel-side |
|
- | |||||
| 7 | 7109P085-60 | Bumper, Rubber |
|
$ 7.53 | |||||
| 8 | WP74008015 | Assembly, Hinge Receptacle (Replaces: 8014P031-60) |
|
$ 225.36 | |||||
| 9 | 2624F056-51 | Retainer, Insul. |
|
- | |||||
| 10 | 7002P358-60 | Insulation, (top/back) |
|
- | |||||
| 11 | 3605F236-50 | Plate, Hinge Trap |
|
- | |||||
| 12 | 3802F116-51 | Bottom, Brace |
|
$ 7.82 | |||||
| 13 | WP74011278 | Assembly, Light (Replaces: 7407P181-60) |
|
$ 101.56 | |||||
| 14 | W10828565 | Screw (Replaces: 7101P635-60) |
|
$ 6.70 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 16 | 8009 | Bulb-oven (Replaces: 7407P103-60) |
|
Immediately | $ 16.80 | ||||
| 17 | 7505P322-60 | Smoke Eliminator |
|
- | |||||
| 18 | WP7450P108-60 | Switch, Light (Replaces: 7450P109-60) |
|
Immediately | $ 138.24 | ||||
| NI | 7002P368-60 | Insulation, Wrap |
|
- | |||||
| NI | 7002P251-60 | Insulation, Back |
|
- |
