01 - Body
02 - Control Panel

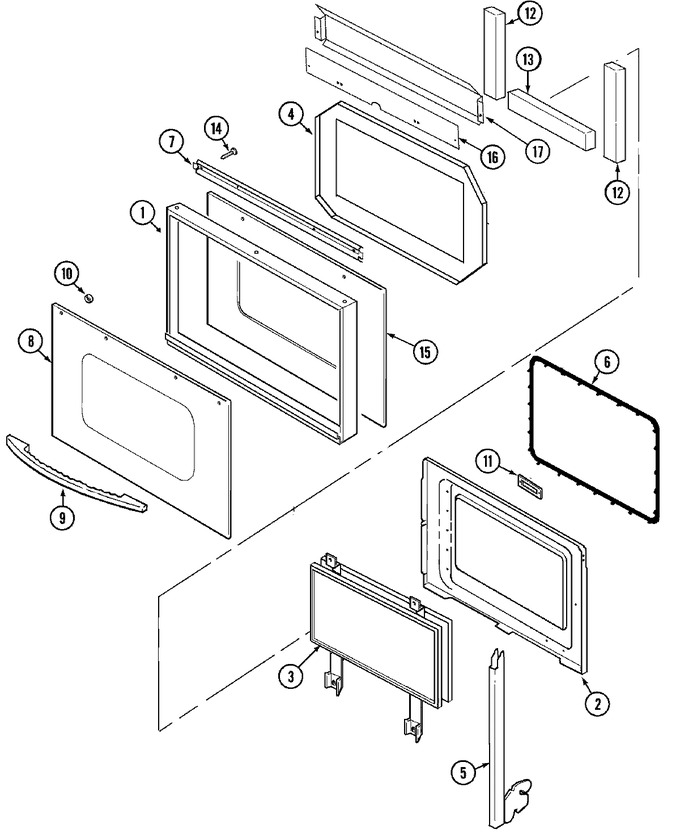

03 - Door (upper & Lower-mew6627bas)
04 - Internal Controls
05 - Supplemental Information
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPY706189 | Screw (Replaces: Y706189) | 10 |
|
Immediately | $ 6.47 | |||
| 1 | 74004510 | Frame, Door (blk) | 10 |
|
- | ||||
| 2 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 10 |
|
$ 6.70 | ||||
| 2 | 71002968 | Liner, Oven Door | 10 |
|
- | ||||
| 2 | WP3400029 | Nut (Replaces: 715634) | 10 |
|
Immediately | $ 6.98 | |||
| 3 | WP7902P444-60 | Window Assembly (Replaces: 71002929) | 10 |
|
$ 147.26 | ||||
| 4 | WP74009029 | Gasket, Rubber (Replaces: 74004733) | 10 |
|
Immediately | $ 145.22 | |||
| 4 | 71002864 | Retainer, Insulation | 10 |
|
- | ||||
| 5 | 71003352 | Hinge, Door | 10 |
|
- | ||||
| 6 | WP71001970 | Seal, Door (Replaces: 71001970) | 10 |
|
$ 156.50 | ||||
| 7 | 74004455 | Bracket, Door Handle | 10 |
|
- | ||||
| 8 | 74004511 | Glass, Door (blk) | 10 |
|
- | ||||
| 8 | 8270P090-60 | Tape, Foil (3`` Wide) | 10 |
|
- | ||||
| 9 | 74004513 | Handle, Door (blk) | 10 |
|
- | ||||
| 10 | 8010P127-60 | Spacer, Door Handle (blk) (Replaces: 74003987) | 10 |
|
- | ||||
| 10 | 8010P073-60 | Spacer, Handle | 10 |
|
- | ||||
| 11 | 71001831 | Plate, Latch | 10 |
|
- | ||||
| 11 | WP355214 | Screw (Replaces: Y700725) | 10 |
|
Immediately | $ 7.26 | |||
| 12 | 71001839 | Insulation, Door (side) | 10 |
|
- | ||||
| 13 | 71001969 | Insulation, Door (btm) | 10 |
|
- | ||||
| 14 | WP355214 | Screw (Replaces: Y700725) | 10 |
|
Immediately | $ 7.26 | |||
| 15 | 74004614 | Panel, Door (stnls) | 10 |
|
- | ||||
| 16 | 71002593 | Sink, Heat | 10 |
|
- | ||||
| 17 | 74004728 | Reflector, Heat Sink | 10 |
|
- |
