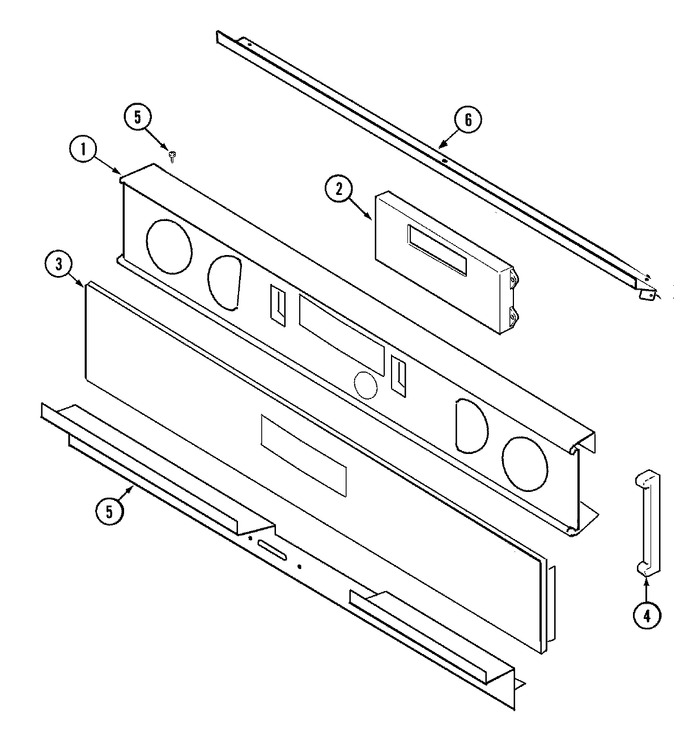

SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 1 | 74004608 | Panel, Control (blk) | 10 |
|
- | ||||
| 2 | WP71001872 | Clock (Replaces: 71001872) | 10 |
|
$ 390.49 | ||||
| 2 | 702731 | Screw | 10 |
|
- | ||||
| 3 | 74006722 | Switch, Membrane Asy (blk) | 10 |
|
$ 234.09 | ||||
| 4 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 4 | 71001794 | End Cap, Panel (blk) | 10 |
|
- | ||||
| 4 | 74006764 | End Cap, Panel (blk) | 15 |
|
- | ||||
| 5 | 71001946 | Trim, Control Panel (blk) | 10 |
|
- | ||||
| 6 | 74004757 | Support, Top Control | 10 |
|
- | ||||
| 7 | 71001809 | Harness, Door Lock (upr) | 10 |
|
- | ||||
| 7 | 71001808 | Harness, Door Switch (upr) | 10 |
|
- | ||||
| 7 | 71001876 | Harness, Door Switch (lwr) | 10 |
|
- | ||||
| 7 | 71001798 | Harness, Wire Control (j2) | 10 |
|
- | ||||
| 7 | 12001732 | Wire Kit | 10 |
|
$ 18.43 | ||||
| 7 | 71001807 | Harness, Supply (j1) | 10 |
|
- | ||||
| 7 | 71001877 | Harness, Door Lock (lwr) | 10 |
|
- | ||||
| 7 | 12001731 | Wire Kit | 10 |
|
- | ||||
| 7 | 71001892 | Harness, Relay Board (j7) | 10 |
|
- | ||||
| 7 | 74007137 | Harness, Lower Main | 12 |
|
- | ||||
| 7 | 74004610 | Harness, 1 Sp Convect | 10 |
|
- | ||||
| 7 | 74006937 | Harness, Control | 12 |
|
- | ||||
| 7 | 74006939 | Harness, Sensor & Relay | 12 |
|
- | ||||
| 7 | 74006960 | Harness, Main (upr) | 12 |
|
- | ||||
| 7 | 74007064 | Harness, Upr Dr Sw. & Mtr | 12 |
|
- | ||||
| 8 | 74005475 | Guide, Cooking (trilingual) | 10 |
|
- | ||||
| 8 | 71002782 | Guide, Cooking | 10 |
|
- | ||||
| 9 | 74005597 | Manual, Use & Care | 10 |
|
- |
