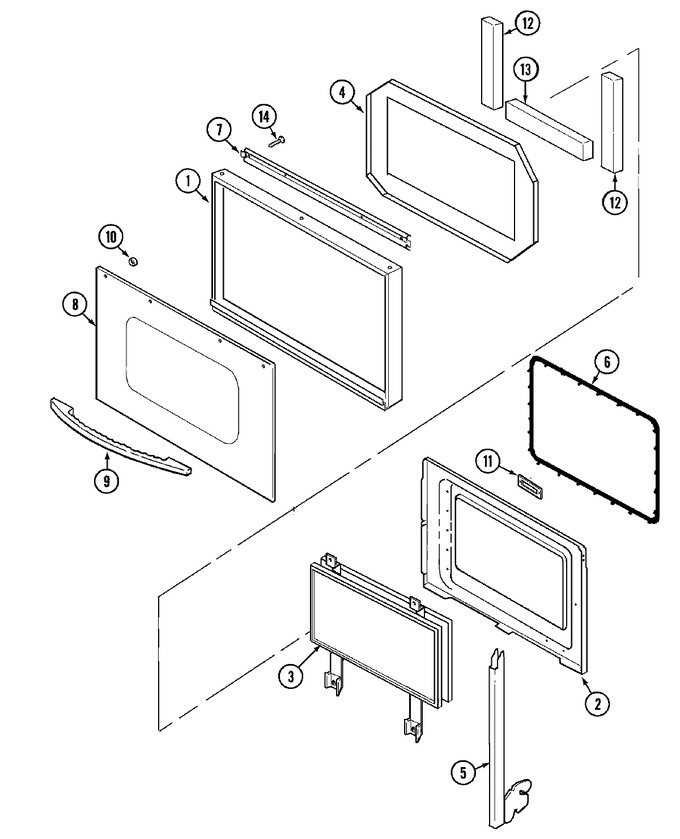

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71001830		Frame, Door (wht)	10	Appelez-nous	-
1	71001827		Screw	10	Appelez-nous	-
2	74005642		Liner, Oven Door	15	Appelez-nous	-
2	WP3400029		Nut   (Replaces: 715634)	10		Immediately	$ 6.98
2	W10828565		Screw, Black   (Replaces: 7101P270-60)	10			$ 6.70
2	71002967		Liner, Oven Door	10	Appelez-nous	-
3	74005641		Window Assembly	15	Appelez-nous	-
3	74009648		Glass Assy/frm Nla Use74009648   (Replaces: 71001871)	10			$ 158.75
4	71002791		Retainer, Insulation	10	Appelez-nous	-
5	71003352		Hinge, Door	10	Appelez-nous	-
6	WP71001841		Seal, Door   (Replaces: 71001841)	10		Immediately	$ 160.14
7	74004618		Bracket, Door Handle	10	Appelez-nous	-
8	74005570		Glass, Door (wht)	14	Appelez-nous	-
8	74006713		Glass, Door (wht)	18	Appelez-nous	-
8	74004620		Glass, Door (wht)	10	Appelez-nous	-
9	74004622		Handle, Oven Door (wht)	10	Appelez-nous	-
10	8010P073-60		Spacer, Handle	10	Appelez-nous	-
11	71001831		Plate, Latch	10	Appelez-nous	-
12	71001839		Insulation, Door (side)	10	Appelez-nous	-
13	71001838		Insulation, Door (btm)	10	Appelez-nous	-
14	WP355214		Screw   (Replaces: Y700725)	10		Immediately	$ 7.26
