SELECT A DIAGRAM

01 - Control Board Parts

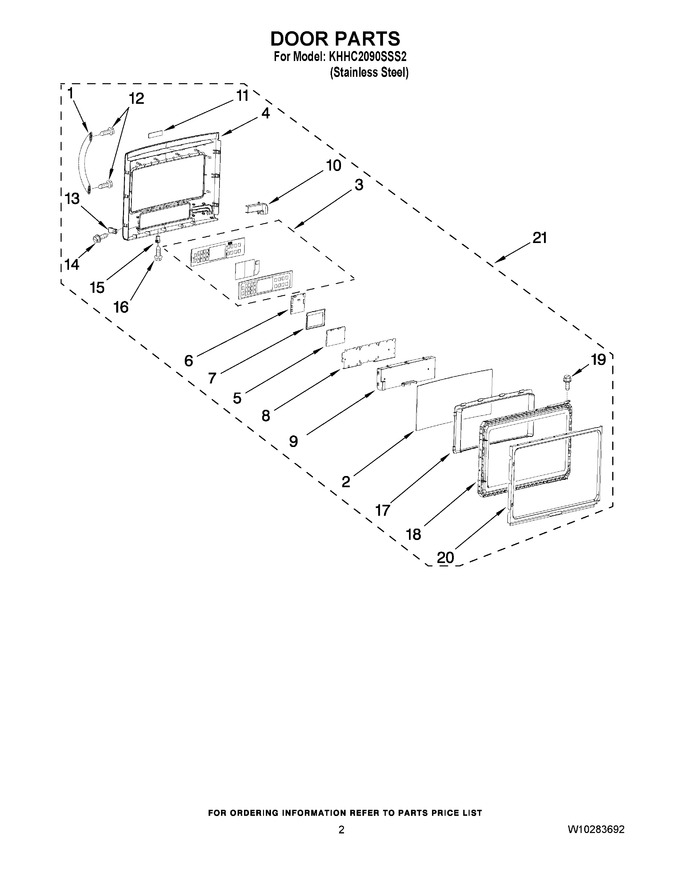

02 - Door Parts


03 - Ventilation Parts


04 - Interior And Air Flow Parts


05 - Rack And Turntable Parts


06 - Cabinet And Installation Parts


07 - Convection Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8206504		Handle (stainless Steel)				$ 263.39
2	WP8206528		Outer Door Glass   (Replaces: 8206528)				$ 167.45
3	W10116267		Control Panel		Appelez-nous	-
4	W10245711		Outer Door Frame (stainless Steel)				$ 220.21
5	W10116269		Lcd Frame				$ 41.55
6	W10283387		Board, User (interface)		Appelez-nous	-
7	W10143962		Lcd Module				$ 199.49
8	8206511		Cntrl Panel Plate				$ 43.06
9	8206512		Cntrl Panel Cover				$ 36.00
10	8206527		Cable Cover, Door				$ 55.23
11	8206517		Logo (stainless Steel)		Appelez-nous	-
12	8206513		Screw (2)		Appelez-nous	-
13	8206525		Spacer, Side (6) (stainless Steel)				$ 6.26
14	8206215		Screw (6)		Appelez-nous	-
15	8206178		Spacer, Bottom (2)				$ 7.05
16	8206179		Screw (2)				$ 5.58
17	W10282799		Cover, Choke				$ 77.84
18	W10112215		Door Plate Assy				$ 293.27
19	W10565483		Hinge Screw   (Replaces: W10143963)				$ 11.95
20	8206531		Dr Innr Frm Assy		Appelez-nous	-
21	W10283390		Door, Complete (stainless)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
