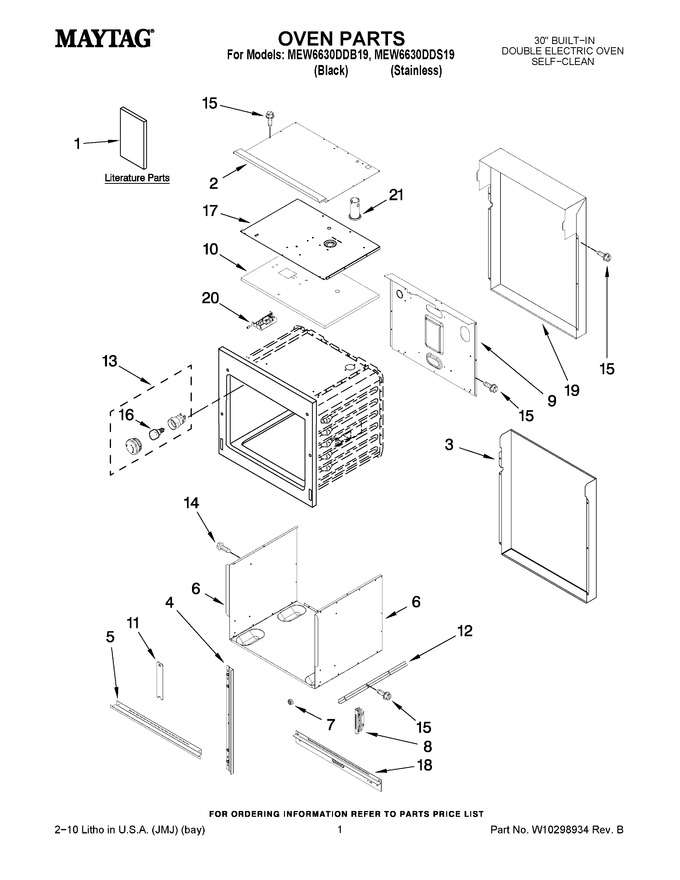

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10176681		Installation Instructions		Appelez-nous	-
1	W10169640		Owners Manual		Appelez-nous	-
1	9762761		Brochure Tips (safe Cooking) (english)		Appelez-nous	-
1	W10065852		Brochure, Tips Safe Cooking (french)		Appelez-nous	-
1	W10192630		Wiring Diagram (english)		Appelez-nous	-
1	W10192631		Wiring Diagram (french)		Appelez-nous	-
2	2624F074-51		Top, Outer				$ 21.14
3	4002F282-51		Back, Outer		Appelez-nous	-
4	7744P409-60		Trim, Side (black/stainless)		Appelez-nous	-
5	3608F085-70		Trim, Oven (black/stainless)		Appelez-nous	-
6	2618F222-51		Panel-side		Appelez-nous	-
7	7109P085-60		Bumper, Rubber				$ 7.53
8	WP74008015		Receptacle, Hinge Assembly   (Replaces: 8014P031-60)				$ 225.36
9	2624F056-51		Retainer, Insul.		Appelez-nous	-
10	7002P358-60		Insulation, (top/back)		Appelez-nous	-
11	3605F236-50		Plate, Hinge Trap		Appelez-nous	-
12	3802F116-51		Bottom, Brace				$ 7.82
13	WP74011278		Assy., Light   (Replaces: 7407P181-60)				$ 101.56
14	W10828565		Screw   (Replaces: 7101P635-60)				$ 6.70
15	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
16	8009		Bulb-oven   (Replaces: 7407P103-60)			Immediately	$ 16.80
17	2624F063-51		Top, Inner Center		Appelez-nous	-
18	7756P195-60		Extrusion, Center		Appelez-nous	-
19	2624F062-51		Panel, Upper Outer Back		Appelez-nous	-
20	WP7450P108-60		Assy., Light Sw   (Replaces: 7450P109-60)			Immediately	$ 138.24
21	7505P322-60		Smoke Eliminator		Appelez-nous	-
NI	7002P368-60		Insulation, Wrap		Appelez-nous	-
NI	7002P251-60		Insulation, Back		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
