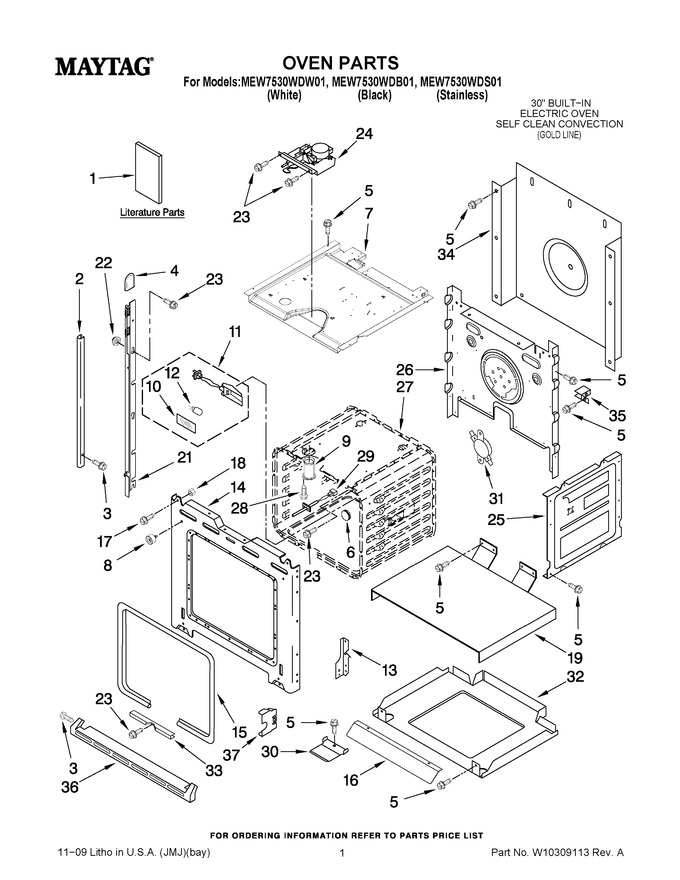

01 - Oven Parts
02 - Oven Door Parts
03 - Internal Oven Parts
04 - Control Panel Parts
05 - Top Venting Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10192049 | Installation Instructions |
|
- | |||||
| 1 | W10276986 | Owners Manual |
|
- | |||||
| 1 | W10185218 | Tech Sheet (english) |
|
- | |||||
| 1 | W10205112 | Tech Sheet (french) |
|
- | |||||
| 1 | 8304571 | Installation/ Undercounter |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | 4457288 | Install, Instruct Bottom Trim |
|
- | |||||
| 2 | W10278485 | Trim, Side Right (white) |
|
$ 51.67 | |||||
| 2 | WPW10144983 | Trim, Side Right (stainless) (Replaces: W10144983) |
|
$ 141.22 | |||||
| 2 | W10278483 | Trim, Side Right (black) |
|
- | |||||
| 2 | W10144984 | Trim, Side Left (stainless) |
|
$ 133.34 | |||||
| 2 | W10278486 | Trim, Side Left (white) |
|
$ 49.98 | |||||
| 2 | W10278484 | Trim, Side Left (black) |
|
- | |||||
| 3 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 6.98 | ||||
| 4 | 4451605 | Cap, Spacer |
|
$ 38.55 | |||||
| 5 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 6 | 4448982 | Plug, Button |
|
- | |||||
| 7 | 8303099 | Top, Chassis |
|
$ 70.97 | |||||
| 8 | W10105790 | Bumper, Door |
|
$ 6.35 | |||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 104.97 | |||||
| 10 | W10169756 | Lens, Light |
|
$ 36.16 | |||||
| 11 | WPW10307114 | Assembly, Oven Light (Replaces: W10009940) |
|
Immediately | $ 99.44 | ||||
| 12 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 42.64 | ||||
| 13 | WP4455605 | Hinge, Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 103.82 | ||||
| 13 | WP4455606 | Hinge, Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 107.47 | ||||
| 14 | WPW10115831 | Frame, Front (Replaces: W10115831) |
|
$ 301.62 | |||||
| 15 | W11675844 | Gasket, Door (Replaces: 4455382) |
|
Immediately | $ 62.78 | ||||
| 16 | 9760677 | Deflector, Vent |
|
$ 155.46 | |||||
| 17 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 18 | WP4450118 | Nut (Replaces: 4450118) |
|
$ 7.16 | |||||
| 19 | 4451478 | Support, Insulation |
|
$ 54.10 | |||||
| 21 | 814372 | Rail, Side (left) (Replaces: 4450580) |
|
$ 108.63 | |||||
| 21 | 814371 | Rail, Side (right) (Replaces: 4450579) |
|
$ 109.53 | |||||
| 22 | WP4448444 | Grommet, Mounting Rail (Replaces: 4448444) |
|
$ 6.73 | |||||
| 23 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 24 | WPW10195934 | Latch, Motorized (Replaces: W10195934) |
|
Immediately | $ 259.79 | ||||
| 25 | W10782197 | Side, Chassis (Replaces: 4455641) |
|
$ 129.16 | |||||
| 26 | W10161110 | Back, Chassis |
|
- | |||||
| 27 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 28 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 29 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 86.25 | ||||
| 30 | W10145009 | Deflector, Vent Box (Replaces: 4452489) |
|
$ 69.95 | |||||
| 31 | WP9759242 | Thermostat (Replaces: 9759242) |
|
Immediately | $ 77.01 | ||||
| 32 | 9759713 | Base, Chassis |
|
$ 100.19 | |||||
| 33 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 7.97 | |||||
| 34 | WP4451747 | Cover, Back (Replaces: 4451747) |
|
$ 128.63 | |||||
| 35 | 4449845 | Support, Bracket |
|
- | |||||
| 36 | W10278493 | Vent, Bottom Trim (black) |
|
$ 65.74 | |||||
| 36 | W10278494 | Vent, Bottom Trim (white) |
|
$ 39.83 | |||||
| 36 | W10166934 | Vent, Bottom Trim (stainless) |
|
- | |||||
| 37 | 4452152 | Bracket, Mounting Bottom Vent |
|
$ 30.15 | |||||
| NI | W11684730 | Insulation, Wrap (Replaces: 4449316) |
|
$ 107.01 | |||||
| NI | 4450365 | Insulation, Back |
|
$ 70.95 |
