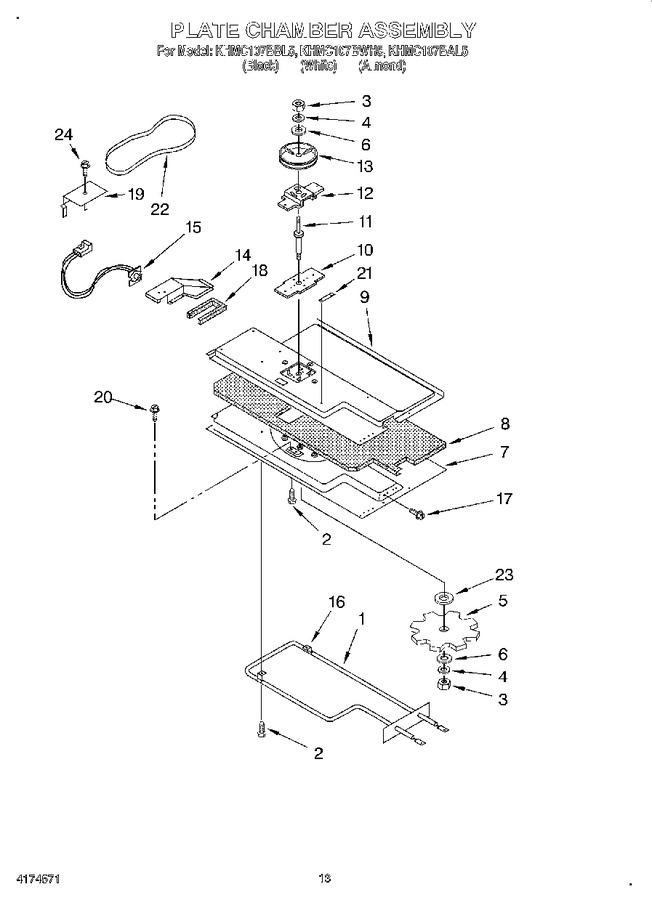

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358983 | Heater, Sheath |
|
- | |||||
| 2 | WP3196557 | Screw (Replaces: 4358045) |
|
Immediately | $ 7.16 | ||||
| 3 | 4358476 | Nut |
|
- | |||||
| 4 | WP8533914 | Washer (Replaces: 4358477) |
|
Immediately | $ 4.04 | ||||
| 5 | 4358984 | Fan |
|
- | |||||
| 6 | 4358478 | Washer |
|
- | |||||
| 7 | 4358985 | Plate, Chamber |
|
- | |||||
| 8 | 4358986 | Insulation |
|
- | |||||
| 9 | 4358987 | Plate, Chamber |
|
- | |||||
| 10 | 4359025 | Plate, Bearing |
|
- | |||||
| 11 | 4358989 | Bearing Assembly |
|
- | |||||
| 12 | 4358990 | Holder, Bearing |
|
- | |||||
| 13 | 4358991 | Pulley, Chamber |
|
- | |||||
| 14 | 4358992 | Air Tunnel |
|
- | |||||
| 15 | 4358993 | Sensor |
|
- | |||||
| 16 | 4358994 | Hanger, Heater |
|
- | |||||
| 17 | 4344826 | Screw (Replaces: 4358474) |
|
$ 14.31 | |||||
| 18 | 4358660 | Cushion |
|
- | |||||
| 19 | 4359026 | Bracket, Sensor |
|
- | |||||
| 20 | W11245710 | Screw (Replaces: 4358362) |
|
Immediately | $ 12.65 | ||||
| 21 | 4358469 | Lug |
|
- | |||||
| 22 | 4358995 | Belt |
|
- | |||||
| 23 | 4359027 | Plate, Fan |
|
- | |||||
| 24 | 4358376 | Screw |
|
- |
