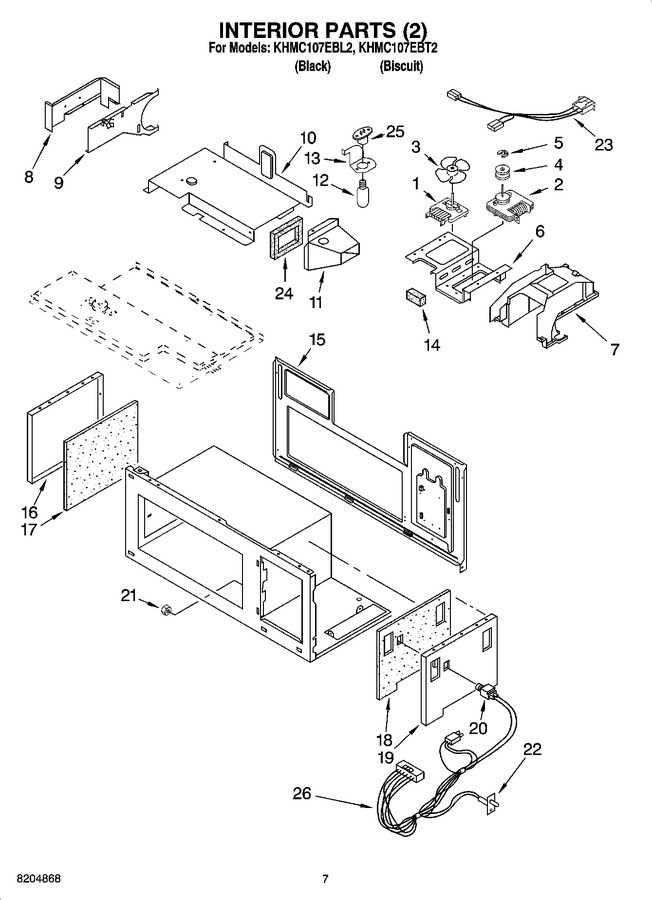

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358962 | Motor, Tower |
|
- | |||||
| 2 | 4358961 | Motor, Circulation |
|
- | |||||
| 3 | 4158758 | Propeller |
|
- | |||||
| 4 | 4358963 | Pulley, Motor |
|
- | |||||
| 5 | 4358964 | E-ring |
|
- | |||||
| 6 | 4358965 | Bracket, Motor |
|
- | |||||
| 7 | 4358966 | Air Duct |
|
- | |||||
| 8 | 4359003 | Guide, Chamber |
|
- | |||||
| 9 | 4358968 | Guide, Chamber |
|
- | |||||
| 10 | 4358969 | Guide, Chamber |
|
- | |||||
| 11 | 4358970 | Guide, Air Duct |
|
- | |||||
| 12 | WPA3073101 | Oven Lamp (Replaces: 4358971) |
|
Immediately | $ 10.90 | ||||
| 13 | 4358972 | Cover, Oven Lamp |
|
- | |||||
| 14 | 4158864 | Cushion |
|
- | |||||
| 15 | 4358974 | Cover, Back |
|
- | |||||
| 16 | 4358975 | Cover |
|
- | |||||
| 17 | 4358976 | Insulation |
|
- | |||||
| 18 | 4358977 | Insulation |
|
- | |||||
| 19 | 4358978 | Cover |
|
- | |||||
| 20 | 4358979 | Lead Wire, Jack |
|
- | |||||
| 21 | 4158212 | Nut |
|
- | |||||
| 22 | 4359004 | Thermistor |
|
- | |||||
| 23 | 4358980 | Lead Wire |
|
- | |||||
| 24 | 4358981 | Cushion |
|
- | |||||
| 25 | 4358790 | Lamp Holder |
|
- | |||||
| 26 | 4358973 | Wire Harness |
|
- |
