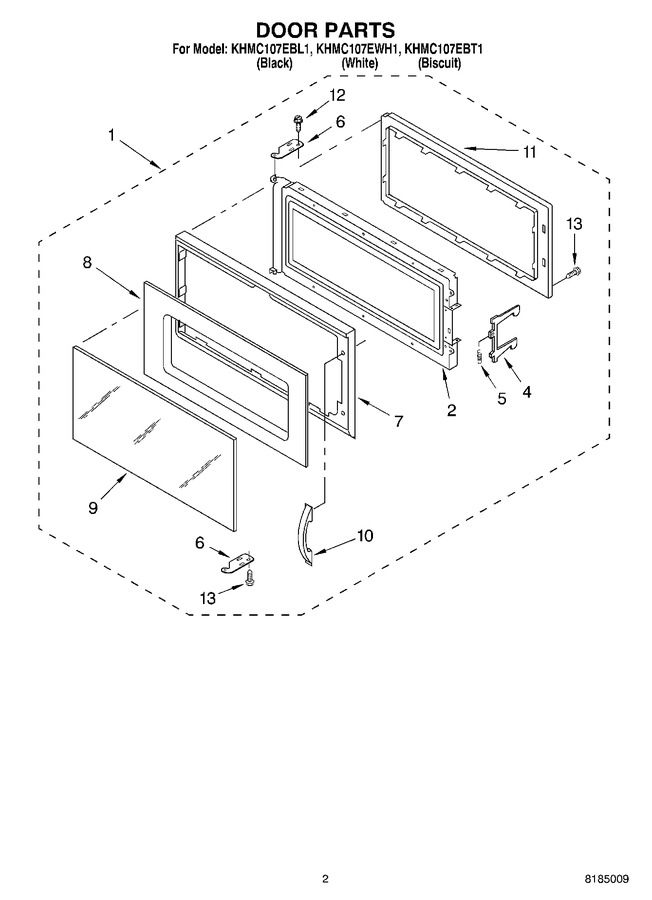

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359445 | Door Assembly (black Model) |
|
- | |||||
| 1 | 4359448 | Door Assembly (white Model) |
|
- | |||||
| 1 | 8172105 | Door Assembly (biscuit) |
|
- | |||||
| 2 | 4358937 | Frame, Door |
|
- | |||||
| 4 | 4359860 | Latch |
|
$ 7.56 | |||||
| 5 | 8183882 | Spring, Latch |
|
- | |||||
| 6 | 4358820 | Plate, Hinge |
|
- | |||||
| 7 | 4359418 | Panel, Door (white Model) |
|
- | |||||
| 7 | 4359961 | Panel, Door (biscuit) |
|
- | |||||
| 7 | 4359427 | Panel, Door (black Model) |
|
- | |||||
| 8 | 4359014 | Baffle, Door |
|
- | |||||
| 9 | 4359962 | Glass, Door (biscuit) |
|
- | |||||
| 9 | 4359419 | Glass, Door (white Model) |
|
- | |||||
| 9 | 4359446 | Glass, Door (black Model) |
|
- | |||||
| 10 | 4359441 | Deco, Door Handle (black Model) |
|
- | |||||
| 10 | 4359960 | Deco, Door Handle (biscuit) |
|
- | |||||
| 10 | 4359420 | Deco, Door Handle (white Model) |
|
- | |||||
| 11 | 4358943 | Choke Cover |
|
- | |||||
| 12 | 4358067 | Screw |
|
- | |||||
| 13 | 4358479 | Screw |
|
- |
