Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4158541 Exhaust Adapter Appelez-nous -
2 4158319 Exhaust Damper Special Order $ 28.91

3 WP8169704 Toggle Bolt/wings   (Replaces: 4158321) In-Stock Immediately $ 10.07

4 4158326 Toggle Wing Special Order $ 5.27

5 4158323 Screw Special Order $ 5.27

6 4158315 Screw Appelez-nous -
7 4158314 Washer Special Order $ 5.48

8 4358924 Plate, Mounting Wing Appelez-nous -
9 8534021 Clamp   (Replaces: 4358011) Special Order $ 7.59

10 4358012 Bushing Appelez-nous -
11 4358934 Sheet-top Cabinet Template Appelez-nous -
12 4358935 Sheet-wall Template Appelez-nous -
13 4358188 Screw Appelez-nous -
14 4358192 Screw Appelez-nous -
15 WP98008545 Screw   (Replaces: 4358010) Special Order $ 15.94

16 4358933 Safety Rod Special Order $ 22.89


    View Diagram in Separate Window     Print Icon   Print Part List

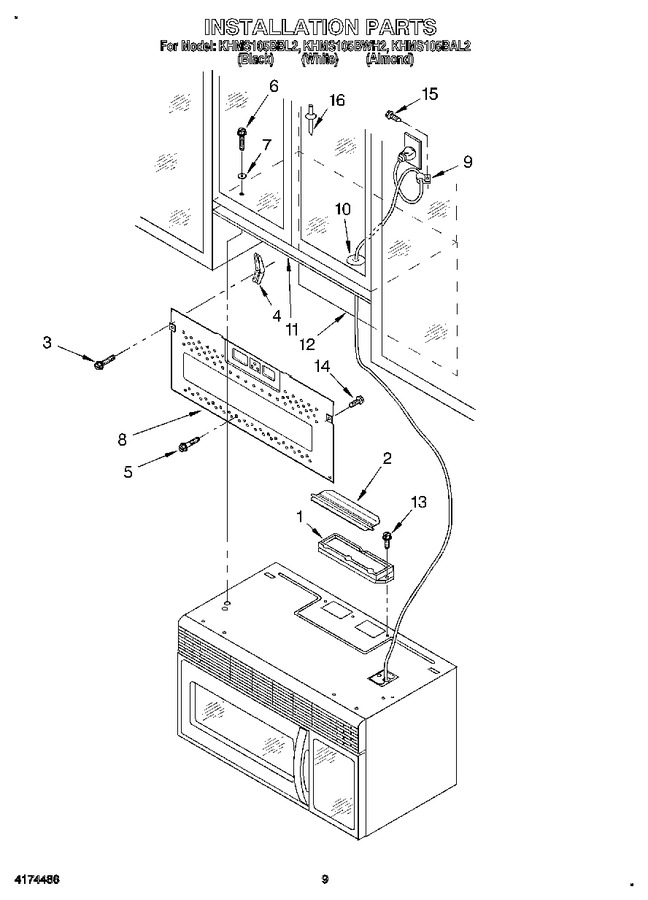

Diagram for KHMS105BAL2
