Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4158415 Hinge Plate Appelez-nous -
1 4158388 Main Wiring Harness Appelez-nous -
2 4158440 Smoke Deflector Kit Appelez-nous -
2 4158404 Harness Appelez-nous -
2 WP482338 Sealer, Silastic (3 Oz.)   (Replaces: 482338) In-Stock Immediately $ 57.16

2 4158491 Installation Hardware Appelez-nous -
2 4158311 Filler Kit Appelez-nous -
2 4158087 Plain Washer Appelez-nous -
3 4158416 Spring Washer Appelez-nous -
4 4158417 Tapping Screw Appelez-nous -
5 4158117 Hinge Washer Appelez-nous -
6 4158470 Complete Door Appelez-nous -
7 4158510 Handle Appelez-nous -
8 4158072 Screw, Tapping (2) Appelez-nous -
9 4158487 Plug, Button Appelez-nous -
LIT3147331 Auto Set Chart Appelez-nous -
LIT4158489 List, Repair Parts Appelez-nous -
LIT4158430 Cookbook Appelez-nous -
4158274 Tech Sheet Appelez-nous -
LIT4158431 Instructions, Installation Appelez-nous -
LIT4158429 Guide, Use & Care Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

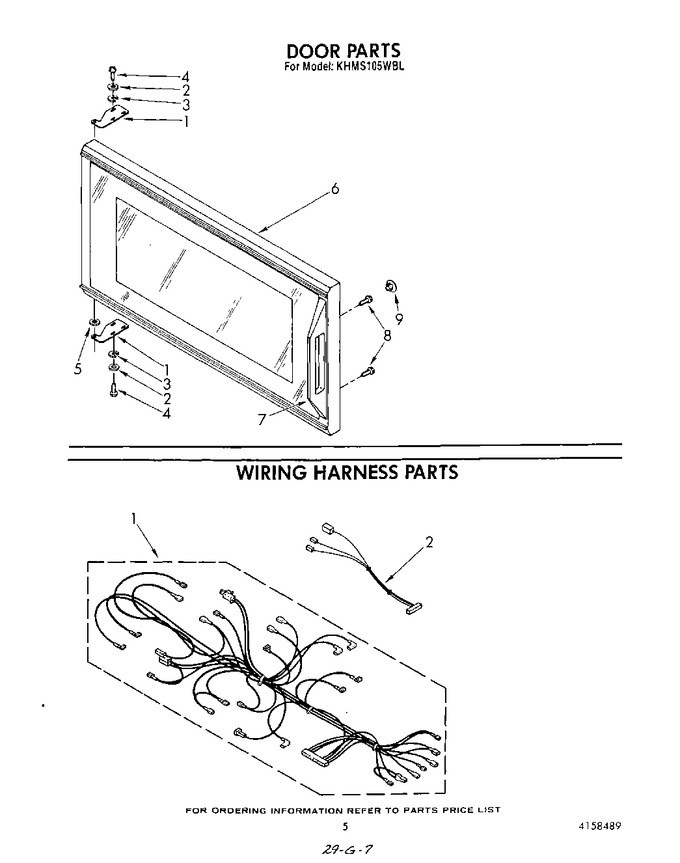

Diagram for KHMS105WBL
