SELECT A DIAGRAM

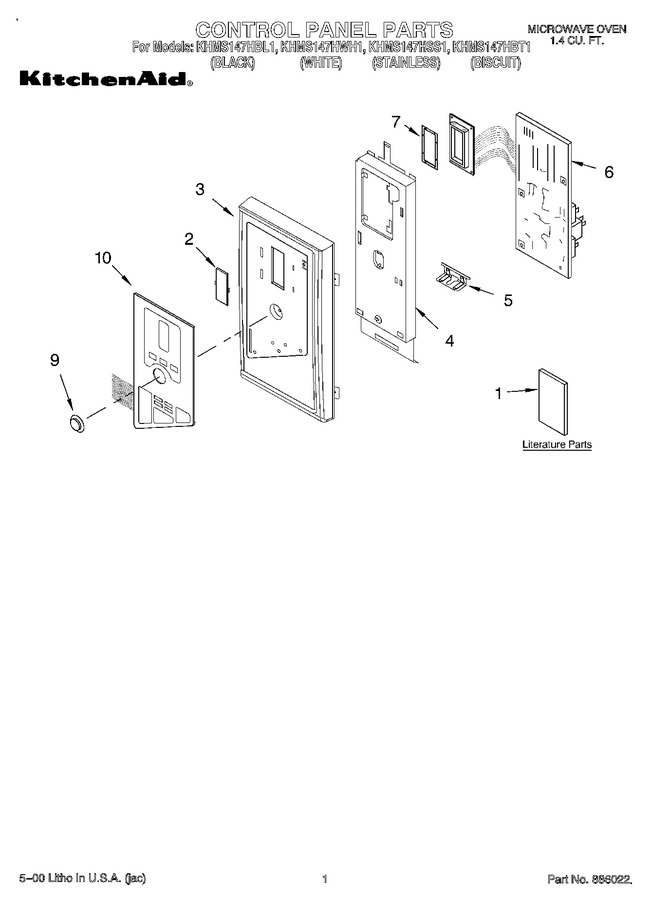

01 - Control Panel, Literature
02 - Door
03 - Interior And Ventilation
04 - Air Flow
05 - Magnetron And Turntable
06 - Cabinet And Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8169412 | Literature (u & C Guide) |
|
- | |||||
| 1 | LIT8169391 | Literature (tech Sheet) |
|
- | |||||
| 1 | LIT8169442 | Literature (cook Guide Label) |
|
- | |||||
| 1 | LIT8169529 | Literature (cooking Sheet) |
|
- | |||||
| 1 | LIT8169769 | Literature (instructions, Installation) |
|
- | |||||
| 2 | 8169521 | Lens |
|
- | |||||
| 3 | 8169556 | Panel, Control (biscuit) |
|
- | |||||
| 3 | 8169524 | Panel, Control (stainless) |
|
- | |||||
| 3 | 8169522 | Panel, Control (white) |
|
- | |||||
| 3 | 8169523 | Panel, Control (black) |
|
- | |||||
| 4 | 8169525 | Bracket, Control |
|
- | |||||
| 5 | 4393744 | Plate, Hinge |
|
- | |||||
| 6 | 8169526 | Pcb Assembly |
|
- | |||||
| 7 | 8169555 | Gasket, Silicone |
|
- | |||||
| 9 | 8169553 | Knob (biscuit) |
|
- | |||||
| 9 | 8169517 | Knob (white) |
|
- | |||||
| 9 | 8169518 | Knob (black) |
|
- | |||||
| 10 | 8169554 | Switch, Membrane (biscuit) |
|
- | |||||
| 10 | 8169519 | Switch, Membrane (white) |
|
- | |||||
| 10 | 8169520 | Switch, Membrane (black) |
|
- |
