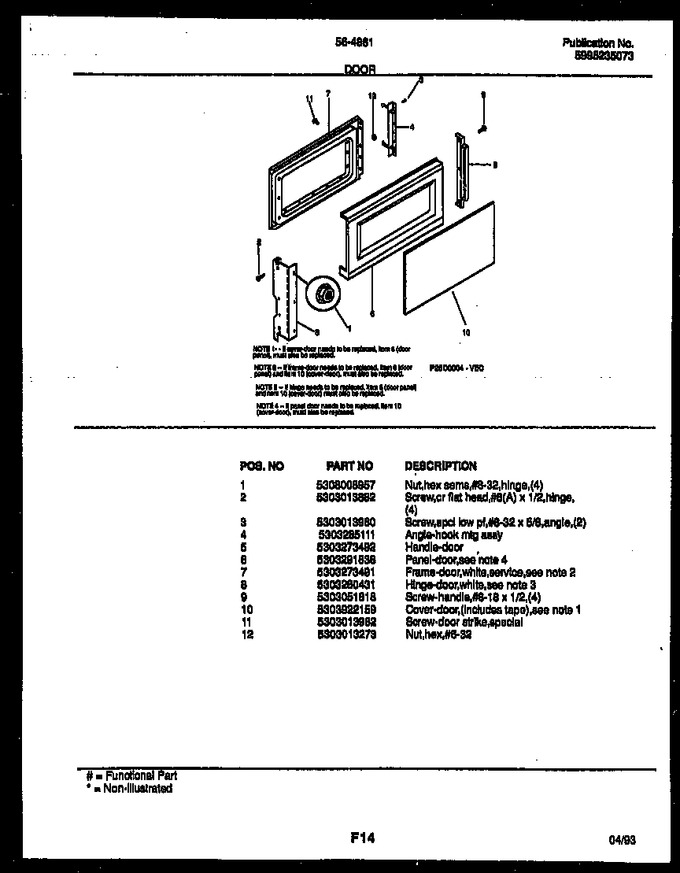

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308008957 | Nut, Hex Sems, 8-32, Hinge, (4) |
|
- | |||||
| 2 | 5303013882 | Screw, Cr Flat Head, 8(a) X 1/2, Hinge, (4) |
|
- | |||||
| 3 | 5303013960 | Screw, Spcl Low Pf, 8, 32 X 5/8, Angle, (2) |
|
- | |||||
| 4 | 5303285111 | Angle-hook Mtg Assy |
|
- | |||||
| 5 | 5303273492 | Handle-door |
|
- | |||||
| 6 | 5303291838 | Panel-door (if Panel Door Needs To Be Replaced, Item 10 |
|
- | |||||
| 7 | 5303273491 | Frame-door, White, Service, (if Frame-door Needs To Be R |
|
- | |||||
| 8 | 5303280431 | Hinge-door, White, (if Hinge Needs To Be Replaced, Item |
|
- | |||||
| 9 | 5303051818 | Screw-handle, 8-18 X 1/2, (4) |
|
- | |||||
| 10 | 5303922159 | Cover-door, (includes Tape), (if Cover-door Needs To Be |
|
- | |||||
| 11 | 5303013962 | Screw-door Strike, Special |
|
- | |||||
| 12 | 5303013273 | Nut, Hex, 6-32 |
|
- |
