SELECT A DIAGRAM

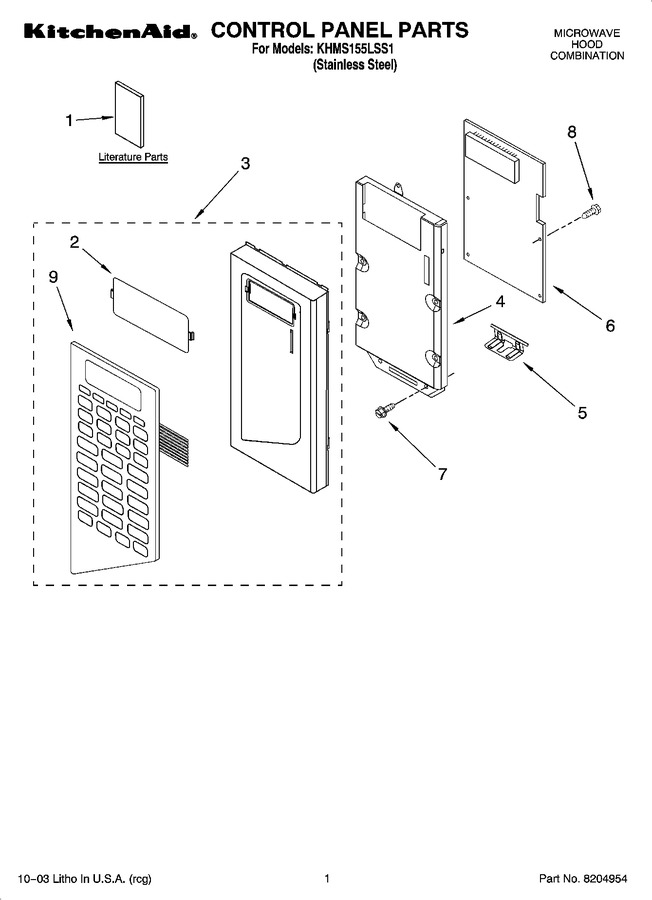

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8184871 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT8184791 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8169658 | Literature Parts (cook Guide Label) |
|
- | |||||
| 1 | LIT8169631 | Literature Parts (instructions, Installation) |
|
- | |||||
| 2 | 4393905 | Lens |
|
- | |||||
| 3 | 8205018 | Panl-cntrl |
|
- | |||||
| 4 | 8183821 | Bracket, Control |
|
- | |||||
| 5 | 4393744 | Plate, Hinge |
|
- | |||||
| 6 | 8169733 | Pcb Assembly |
|
$ 322.74 | |||||
| 7 | 4393828 | Screw |
|
- | |||||
| 8 | 4393346 | Screw |
|
- | |||||
| 9 | 8169727 | Switch, Membrane |
|
- |
