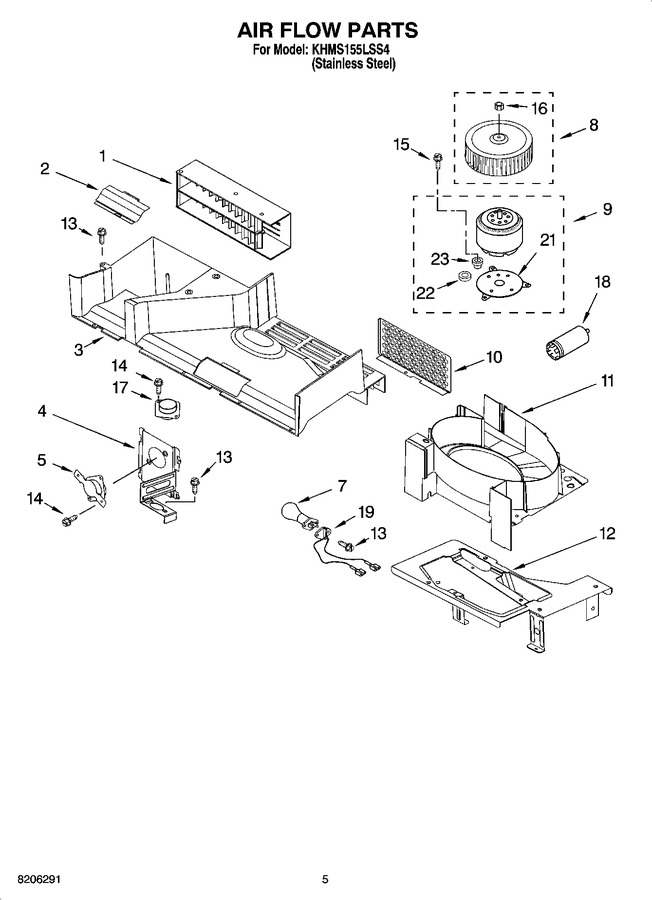

04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8184638 | Deflector, Air |
|
- | |||||
| 2 | 8169557 | Reflector, Air |
|
- | |||||
| 3 | 8185083 | Duct, Air |
|
- | |||||
| 4 | 8204653 | Bracket, Thermostat |
|
- | |||||
| 5 | 8183697 | Thermostat |
|
$ 23.56 | |||||
| 7 | 8204670 | Halogen Lamp |
|
Immediately | $ 25.94 | ||||
| 8 | 4393960 | Wheel, Fan |
|
- | |||||
| 9 | 8169632 | Motor, Fan |
|
- | |||||
| 10 | 8204754 | Shield |
|
- | |||||
| 11 | 8184624 | Housing, Fan |
|
- | |||||
| 13 | 8169474 | Screw |
|
$ 8.51 | |||||
| 14 | 4393316 | Screw |
|
- | |||||
| 15 | 4393830 | Screw |
|
- | |||||
| 16 | 8184404 | Nut |
|
- | |||||
| 17 | 4393808 | Humidity, Sensor |
|
- | |||||
| 18 | 8169561 | Filter |
|
- | |||||
| 19 | 8185084 | Holder, Lamp |
|
- | |||||
| 21 | 8184000 | Adapter, Motor |
|
- | |||||
| 22 | 8204674 | Plate, Damper |
|
- | |||||
| 23 | 8169635 | Cushion, Mtr |
|
- |
