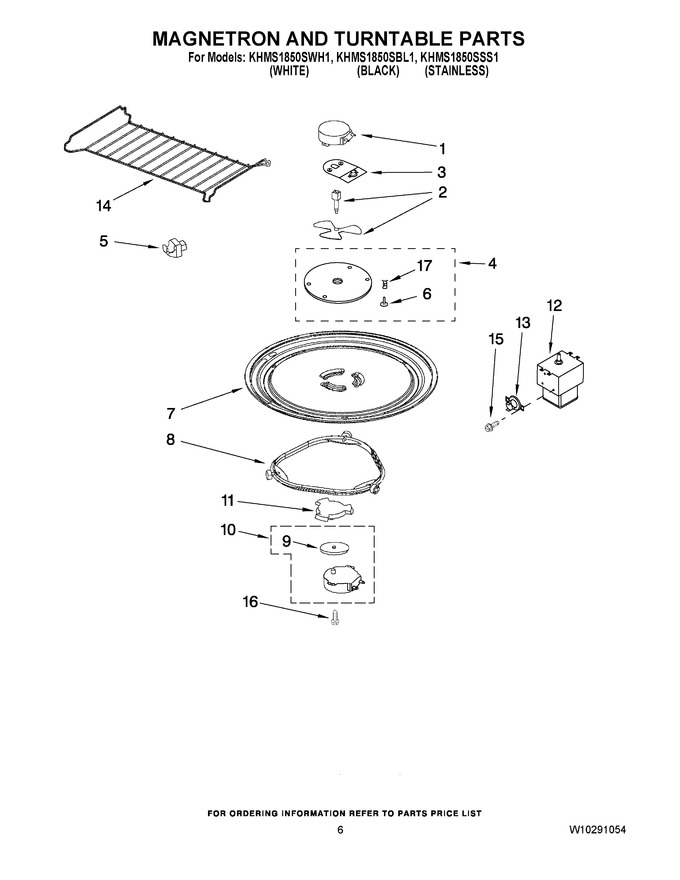

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8205044 | Motor, Stirrer |
|
- | |||||
| 2 | 8205202 | Stirrer Shaft/blade |
|
- | |||||
| 3 | 8206454 | Thermostat/bracket |
|
- | |||||
| 4 | 8184476 | Cover, Inlet Includes Nails And Bushings |
|
- | |||||
| 5 | W10840794 | Hook, Rack (left, Back) (Replaces: W10245208) |
|
$ 21.22 | |||||
| 5 | W10840795 | Hook, Rack (right, Back) (Replaces: W10245209) |
|
$ 22.32 | |||||
| 5 | W10840759 | Hook, Rack (front(2)) (Replaces: W10245207) |
|
- | |||||
| 6 | 8204660 | Nails |
|
- | |||||
| 7 | 4393799 | Turntable |
|
$ 82.90 | |||||
| 8 | W11252182 | Ring, Turntable (Replaces: 8206227) |
|
Immediately | $ 35.60 | ||||
| 9 | 8184109 | Spacer, Waterproof |
|
$ 6.26 | |||||
| 10 | WPW10466420 | Motor, Turntable (Replaces: W10210848) |
|
Immediately | $ 41.14 | ||||
| 11 | W10155348 | Driver,turntable |
|
$ 27.54 | |||||
| 12 | W10222507 | Magnetron |
|
$ 344.20 | |||||
| 13 | 8184951 | Thermostat |
|
$ 52.33 | |||||
| 14 | 8205549 | Rack |
|
- | |||||
| 15 | 4393838 | Screw |
|
- | |||||
| 16 | 4393832 | Screw |
|
$ 11.55 | |||||
| 17 | 8204659 | Bushing |
|
- |
