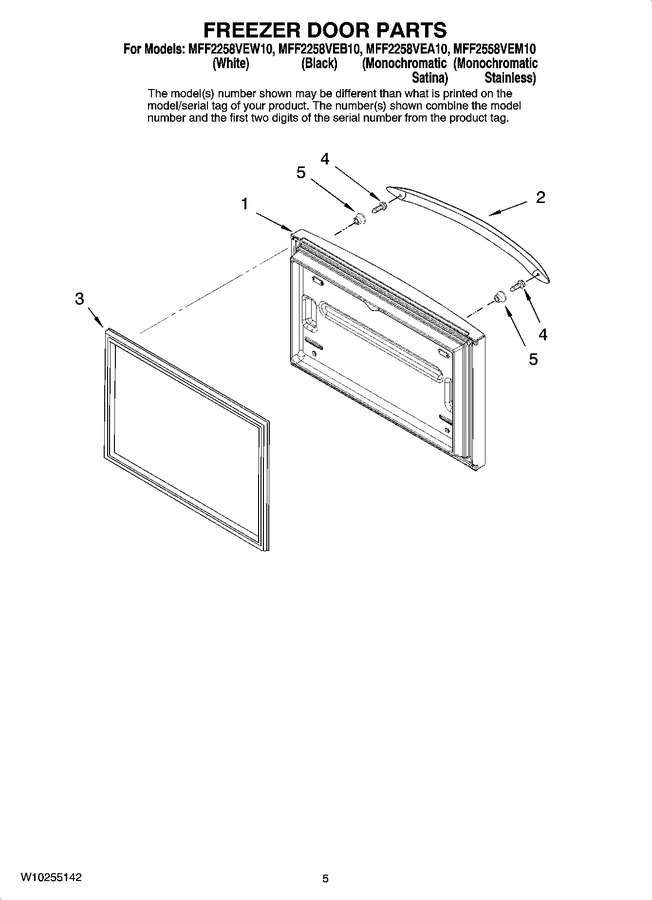

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12977869WQ | Door, Freezer (white) (Replaces: W10258324) |
|
$ 875.72 | |||||
| 1 | W10258325 | Door, Freezer (black) |
|
- | |||||
| 1 | 12977822SQ | Door, Freezer (stainless) |
|
$ 457.11 | |||||
| 1 | 12977822LQ | Door, Freezer (satina) |
|
- | |||||
| 2 | WPW10123792 | Handle, Door (white) (Replaces: W10123792) |
|
$ 187.59 | |||||
| 2 | W10123794 | Handle, Door (black) |
|
$ 82.81 | |||||
| 2 | WPW10123795 | Handle, Door (stainless) (Replaces: W10123795) |
|
$ 239.04 | |||||
| 3 | W10443315 | Gasket, Door (white) (Replaces: W10164036) |
|
$ 174.58 | |||||
| 3 | WPW10436250 | Gasket, Door (black) (Replaces: W10164037) |
|
Immediately | $ 313.19 | ||||
| 3 | W10443316 | Gasket, Door (apollo Grey) (Replaces: W10180623) |
|
$ 218.31 | |||||
| 4 | 67006901 | Screw, Handle (Replaces: 12991703) |
|
Immediately | $ 7.22 | ||||
| 5 | WP67006113 | Mount, Handle (Replaces: 13001201) |
|
Immediately | $ 10.76 |
