01 - Control Panel Parts
02 - Door Parts

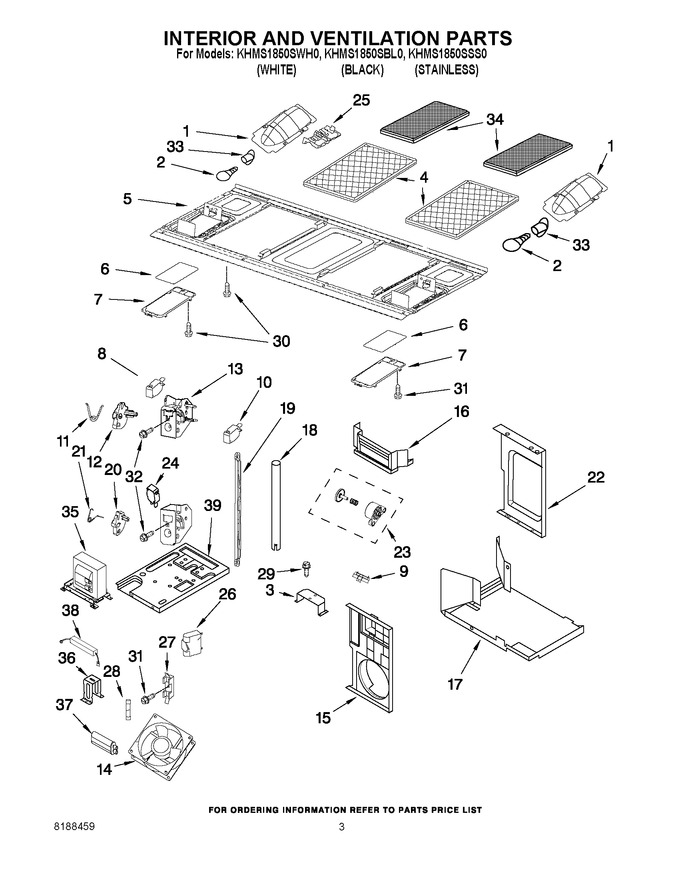

03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8205096 | Reflector, Lamp |
|
- | |||||
| 2 | W10709921 | Lamp (Replaces: W10112515) |
|
Immediately | $ 19.10 | ||||
| 3 | 8205578 | Tc0, Brkt. Assy. |
|
- | |||||
| 4 | W10113040A | Filter, Grease (Replaces: W10113040) |
|
Immediately | $ 21.43 | ||||
| 5 | 8205366 | Plate, Bottom |
|
- | |||||
| 6 | 8184141 | Glass, Lamp |
|
$ 34.66 | |||||
| 7 | 8184889 | Holder, Glass |
|
- | |||||
| 8 | W10211972 | Switch, Micro Primary/secondary (Replaces: 8206345) |
|
Immediately | $ 47.16 | ||||
| 9 | 8205152 | Resistor |
|
$ 43.73 | |||||
| 10 | W10211974 | Switch, Micro (Replaces: 8206352) |
|
Immediately | $ 54.40 | ||||
| 11 | 8169438 | Spring, Interlock |
|
$ 10.69 | |||||
| 12 | 8183824 | Plate, Cam |
|
$ 5.70 | |||||
| 13 | W10117909 | Support, Interlock |
|
- | |||||
| 14 | 8205362 | Fan, Dc 12 Volt |
|
- | |||||
| 15 | 8205364 | Housing, Fan |
|
- | |||||
| 16 | W10117906 | Shield, Wtr. Spill |
|
- | |||||
| 17 | 8205357 | Diffuser, Housing |
|
- | |||||
| 18 | W10117907 | Tube, Watershoot |
|
- | |||||
| 19 | 8185190 | Rod-locking Link |
|
- | |||||
| 20 | W10117910 | Plate, Cam |
|
- | |||||
| 21 | W10117911 | Spring, Interlock |
|
$ 8.46 | |||||
| 22 | 8206455 | Plate, Side |
|
- | |||||
| 23 | W10117912 | Piston Assembly |
|
- | |||||
| 24 | W10269458 | Switch, Micro (Replaces: 8206347) |
|
Immediately | $ 36.10 | ||||
| 25 | 8184202 | Cover, Terminal |
|
- | |||||
| 26 | 8184091 | Motor, Capacitor |
|
- | |||||
| 27 | W10117908 | Holder, Fuse |
|
$ 52.71 | |||||
| 28 | W11707984 | Fuse (Replaces: 4393308) |
|
Immediately | $ 41.27 | ||||
| 29 | 8184199 | Screw |
|
- | |||||
| 30 | 4393835 | Screw |
|
$ 11.83 | |||||
| 31 | 8184200 | Screw |
|
- | |||||
| 32 | 8169479 | Screw (Replaces: 8169477) |
|
$ 6.26 | |||||
| 33 | W10270797 | Holder, Lamp |
|
$ 5.25 | |||||
| 34 | W10112514A | Filter, Charcoal (Replaces: W10112514) |
|
Immediately | $ 26.06 | ||||
| 35 | 8206456 | Transformer, H.v. |
|
$ 246.11 | |||||
| 36 | 8206457 | Bracket, Capacitor |
|
- | |||||
| 37 | W10117913 | Capacitor, H.v. |
|
- | |||||
| 38 | W11256462 | Diode, H.v. (Replaces: 8205361) |
|
Immediately | $ 29.88 | ||||
| 39 | W10117914 | Chassis |
|
- |
