02 - Control Panel
03 - Door Parts
04 - Functional Parts
05 - Wrapper And Body Parts
SELECT A DIAGRAM
New Model Search:

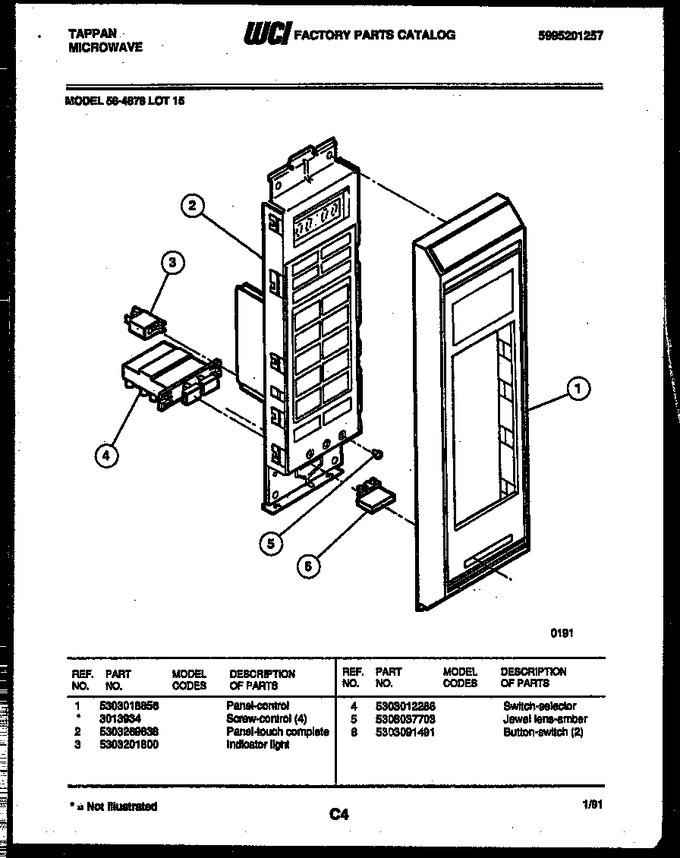

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303018856 | Panel-control |
|
- | |||||
| 2 | 5303269838 | Panel-touch Complete |
|
- | |||||
| 3 | 5303201800 | Indicator Light |
|
- | |||||
| 4 | 5303012286 | Switch-selector |
|
- | |||||
| 5 | 5308037703 | Jewel Lens-amber |
|
- | |||||
| 6 | 5303091491 | Button-switch (2) |
|
- | |||||
| 1A | 3013934 | Screw-control (4) (non-illustrated) |
|
- |
