Diagram for 02 - Upper & Lower Tank Shell
02 - Upper & Lower Tank Shell

Diagram for 03 - Spout Unit Parts
03 - Spout Unit Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3192080 Ground Wire Appelez-nous -
2 4159072 Nut Appelez-nous -
5 WPW10068250 Screw   (Replaces: 3400829) Special Order $ 3.66

7 3193068 Shell, Tank Upper Appelez-nous -
8 4159825 ``o``, Ring Special Order $ 5.62

9 3191376 Element, Heating Appelez-nous -
10 4159824 O-ring Special Order $ 38.57

11 4176126 Deflector Appelez-nous -
13 8565547 Shell, Tank Lower Special Order $ 57.79

14 3193512 Thermostat Appelez-nous -
15 4159493 Lockwasher Special Order $ 21.02

16 3192538 Knob, Thermostat Special Order $ 36.60

17 3193190 Fuse, Thermo Special Order $ 33.78


    View Diagram in Separate Window     Print Icon   Print Part List

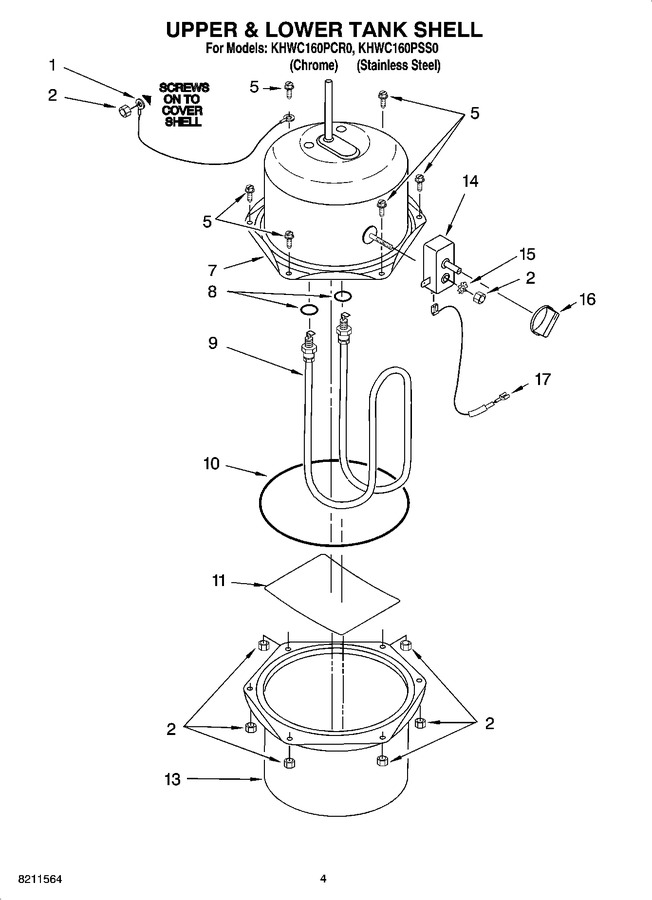

Diagram for KHWC160PCR0
