01 - Outer Cover & Insulation Parts


02 - Upper & Lower Tank Shell

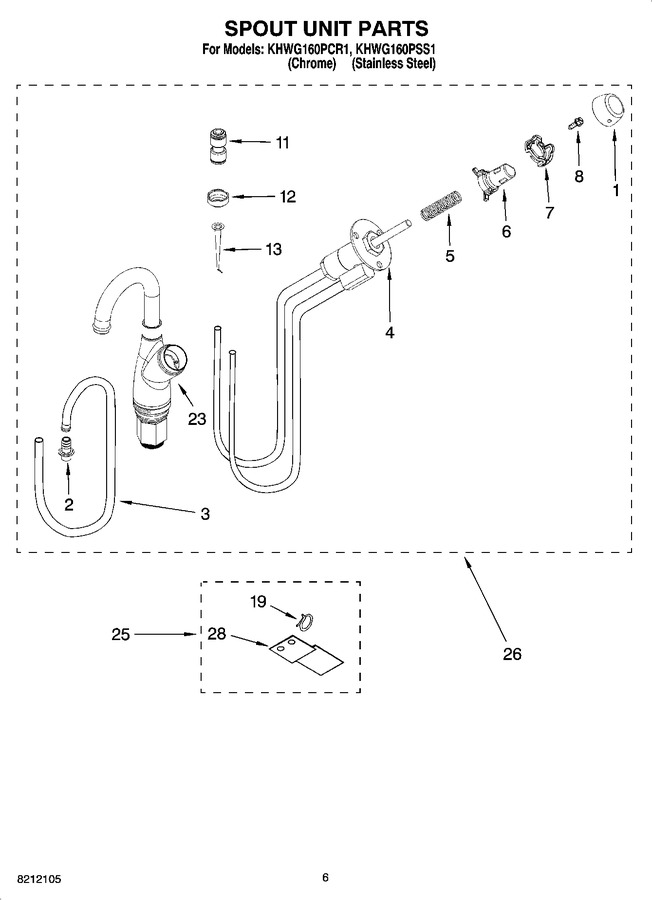

03 - Spout Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8557913		Knob (chrome)		Appelez-nous	-
1	8557914		Knob (stainless)				$ 84.19
2	8558165		Adapter, Hose		Appelez-nous	-
3	8558433		Tube				$ 75.86
4	8557791		Valve Assembly (small)		Appelez-nous	-
5	8557546		Spring		Appelez-nous	-
6	8557545		Cam, Follower		Appelez-nous	-
7	8557544		Cam		Appelez-nous	-
8	WP4450038		Screw   (Replaces: 8534013)				$ 6.84
11	WP2198677		Water Union   (Replaces: 3191383)			Immediately	$ 24.98
12	3191385		Cover, Collet		Appelez-nous	-
13	3193133		Screen, Inlet		Appelez-nous	-
19	3400975		Clamp, Tube		Appelez-nous	-
23	8557895		Spout Body (stainless)		Appelez-nous	-
23	8557894		Spout Body (chrome)		Appelez-nous	-
25	8538300		Installation Kit		Appelez-nous	-
26	WPW10115541		Spout Assembly (chrome)   (Replaces: 8557911)				$ 484.24
26	8557912		Spout Assembly (stainless)		Appelez-nous	-
28	4162589		Bracket, Mounting				$ 5.74

    View Diagram in Separate Window       Print Part List
