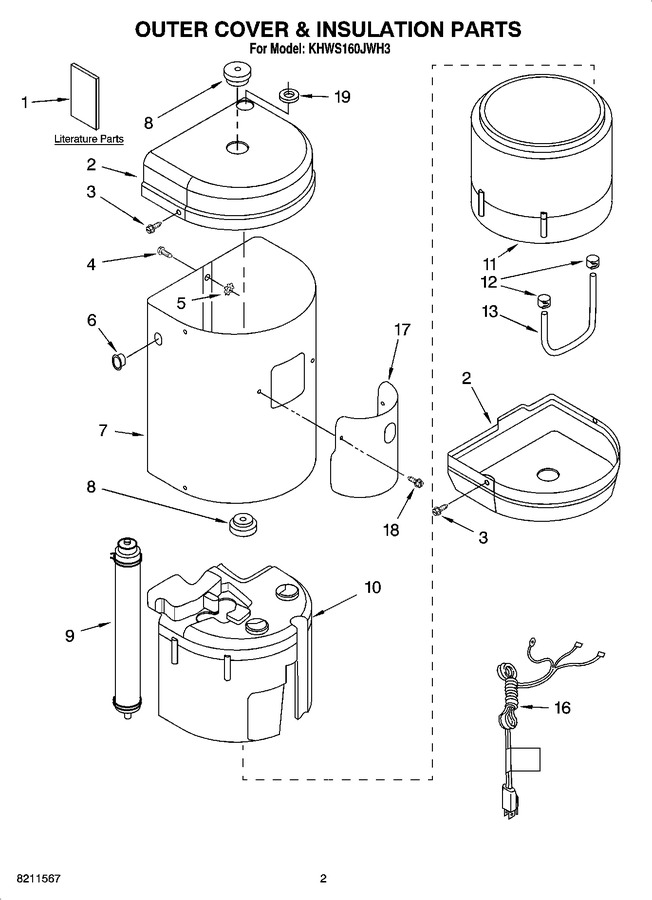

01 - Outer Cover & Insulation Parts
02 - Upper & Lower Tank Shell
03 - Spout Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8565584 | Instructions, Installation & Use & Care Guide |
|
- | |||||
| 2 | 3192031 | End Cap |
|
- | |||||
| 3 | W11245710 | Screw, Drive (Replaces: 4169569) |
|
Immediately | $ 12.65 | ||||
| 4 | 3192294 | Screw, Machine |
|
- | |||||
| 5 | 4159493 | Lockwasher |
|
$ 21.02 | |||||
| 6 | 3191431 | Strain Releif, Power Cord |
|
- | |||||
| 7 | 3193265 | Shell |
|
- | |||||
| 8 | 8534011 | Bushing, Molded |
|
- | |||||
| 9 | 3192006 | Displacer |
|
$ 99.49 | |||||
| 10 | 3192011 | Insulation, Top |
|
- | |||||
| 11 | 3192012 | Insulation, Bottom |
|
- | |||||
| 12 | 3400975 | Clamp, Hose |
|
- | |||||
| 13 | 8541031 | Hose, Clear |
|
- | |||||
| 16 | 3192352 | Cord, Power |
|
- | |||||
| 17 | 3192317 | Front Cover |
|
- | |||||
| 18 | WP313808 | Screw, 6-32 X .250 (Replaces: 311932) |
|
$ 6.84 | |||||
| 19 | 3192013 | Grommet |
|
- |
