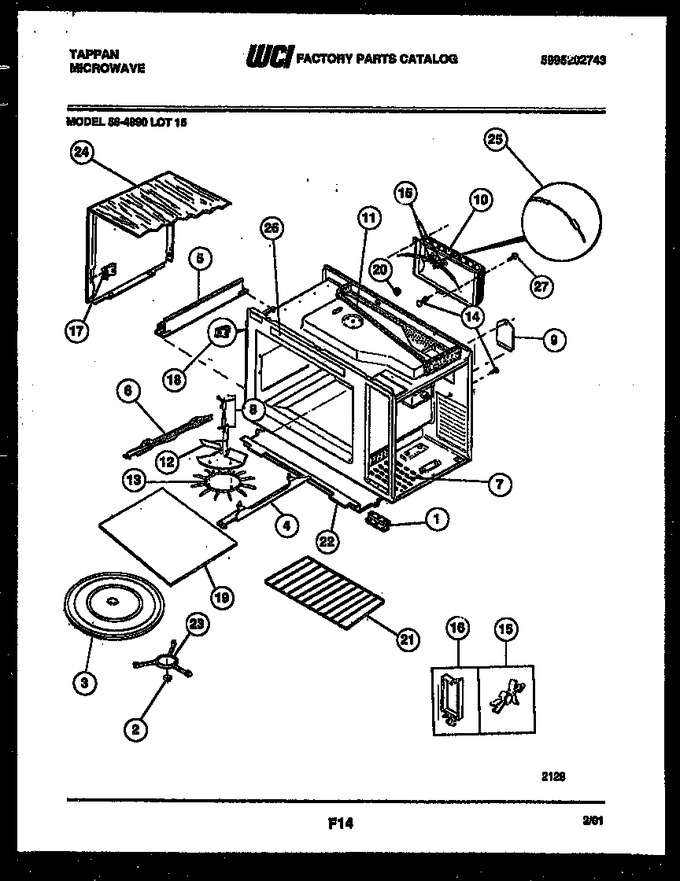

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303011555 | Bracket-control Panel Support |
|
- | |||||
| 2 | 5303212919 | Bushing-motor |
|
- | |||||
| 3 | 5308037674 | Tray-oven |
|
- | |||||
| 4 | 5303011777 | Channel-stirrer Glass Support-rh |
|
- | |||||
| 5 | 5303011773 | Channel Base, Lh |
|
- | |||||
| 6 | 5303011776 | Channel-stirrer Glass Support-lh |
|
- | |||||
| 7 | 5303269830 | Channel-base-rh |
|
- | |||||
| 8 | 5303922010 | Collar-stirrer-(includes Support, Collar And Washer) |
|
- | |||||
| 9 | 5303212775 | Cover-light |
|
- | |||||
| 10 | 5303269958 | Duct-air, Exhaust |
|
- | |||||
| 11 | 5308037640 | Seal-foam |
|
- | |||||
| 12 | 5303269835 | Fan-stirrer |
|
- | |||||
| 13 | 5303269836 | Fan-air Vane |
|
- | |||||
| 14 | 5303091555 | Plug, Button, White, (2) |
|
- | |||||
| 15 | 5303212788 | Support-thermal Protector (2) |
|
- | |||||
| 16 | 5308037677 | Clip, Wires, (3) |
|
- | |||||
| 17 | 5303012322 | Clip, Wrapper, (2) |
|
- | |||||
| 18 | 3203010 | Clip, Hinge, (4) (Replaces: 5303012323) |
|
$ 14.89 | |||||
| 19 | 5303012681 | Cover-glass Stirrer |
|
- | |||||
| 20 | 5303212795 | Grommet, Split |
|
- | |||||
| 21 | 5303206085 | Rack-oven |
|
- | |||||
| 22 | 3014060 | Shield-oven Bottom |
|
- | |||||
| 23 | 5303091004 | Support-rollers |
|
- | |||||
| 24 | 5303271462 | Wrapper-white |
|
- | |||||
| 25 | 5303212800 | Harness-fire Protector |
|
- | |||||
| 26 | 5303018849 | Label Cooking Guide |
|
- | |||||
| 27 | 5303271024 | Screw-tamper Proof (2) |
|
- | |||||
| 24A | 5303270946 | Duct-cavity Foam-internal-fan Stirrer Area (non-illustrated) |
|
- | |||||
| 26A | 5303091100 | Screw-wrapper (27) (non-illustrated) |
|
- | |||||
| 26B | 5303269841 | Shield-oven Light-mylar (non-illustrated) |
|
- |
