Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4162892 Washer Appelez-nous -
2 W11233072 Screw, 10-24 X 1   (Replaces: 4159306) In-Stock Immediately $ 12.62

3 4163521 Wash Pump Top (includes Items 1 & 23) Appelez-nous -
4 4162918 Screw, 10-32 Appelez-nous -
5 4159500 Lock Washer Appelez-nous -
6 4160297 Washer, Spring (impeller) Appelez-nous -
7 4162917 Washer, Impeller Appelez-nous -
8 4159826 ``o`` Ring Appelez-nous -
9 4162921 Wash Impeller Assembly Appelez-nous -
10 4162952 Plate, Air Inlet Cover Appelez-nous -
11 4162953 Gasket, Cover Plate Appelez-nous -
12 4162929 Lower Pump Housing (includes Items 13 & 23) Appelez-nous -
13 4162919 Seal, Wash Pump Ring Appelez-nous -
14 4162933 Fine Strainer Appelez-nous -
15 4159299 Screw, 8-32 X 1/2 Appelez-nous -
16 4159827 ``o`` Ring Appelez-nous -
17 4162932 Motor Mounting Plate (includes Items 18 & 20) Appelez-nous -
18 4161497 Gasket, Motor Mounting Plate Appelez-nous -
19 4162924 Drain Pump Top Assembly Appelez-nous -
19 4159299 Screw, 8-32 X 1/2 Appelez-nous -
20 4163050 Gasket, Drain Pump Appelez-nous -
22 4161986 Motor Clamp Assembly Appelez-nous -
23 4162916 Gasket, Venturi Appelez-nous -
24 4171129 Start Relay Kit (includes Item 25) Appelez-nous -
25 4159403 Screw, 8-18 X 1-1/4 Appelez-nous -
26 4163151 Tube - Flexible (drain) Appelez-nous -
27 WP693304 Screw 10-16 X 1/2   (Replaces: 4159468) Special Order $ 7.04

28 4161508 Clamp, Hose (.937`` Dia.) Appelez-nous -
29 4163305 Bracket, Check Valve Appelez-nous -
30 4162920 Check Valve Assembly Appelez-nous -
31 4163523 Motor, Seal & Gasket Kit (includes Items 18, 20 & 24) Appelez-nous -
32 4159235 Screw, 1/4-20 X 1 Appelez-nous -
33 4161605 Connector, Overhead Appelez-nous -
34 4162031 Clamp, Hose (1.468`` Dia.) Appelez-nous -
36 4171314 Cutter   (Replaces: 4163042) Special Order $ 26.07

37 3363365 Clamp, Hose (1``dia.)   (Replaces: 4162033) Special Order $ 9.68

41 4163634 Shim Washer Kit Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

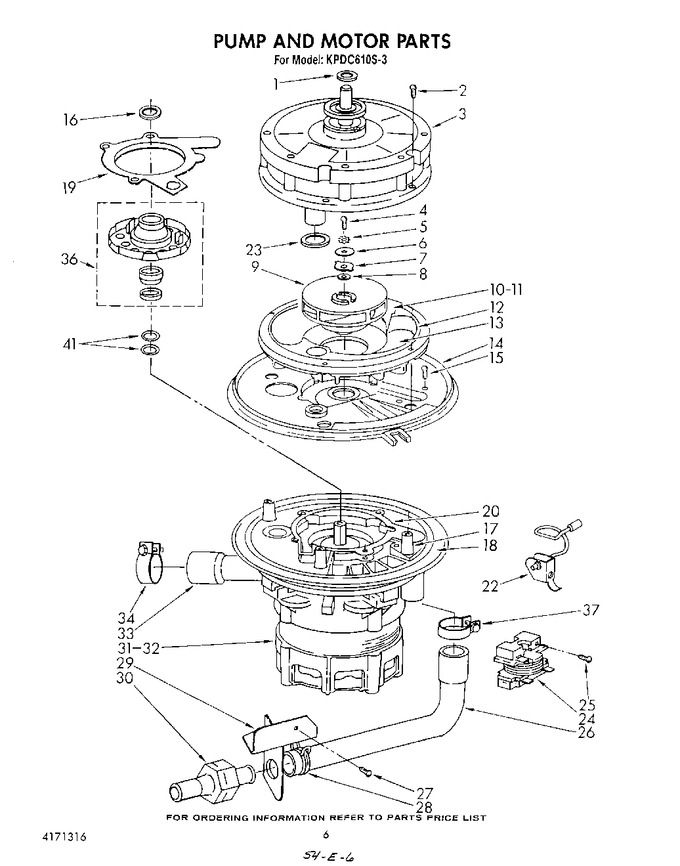

Diagram for KPDC601S3
