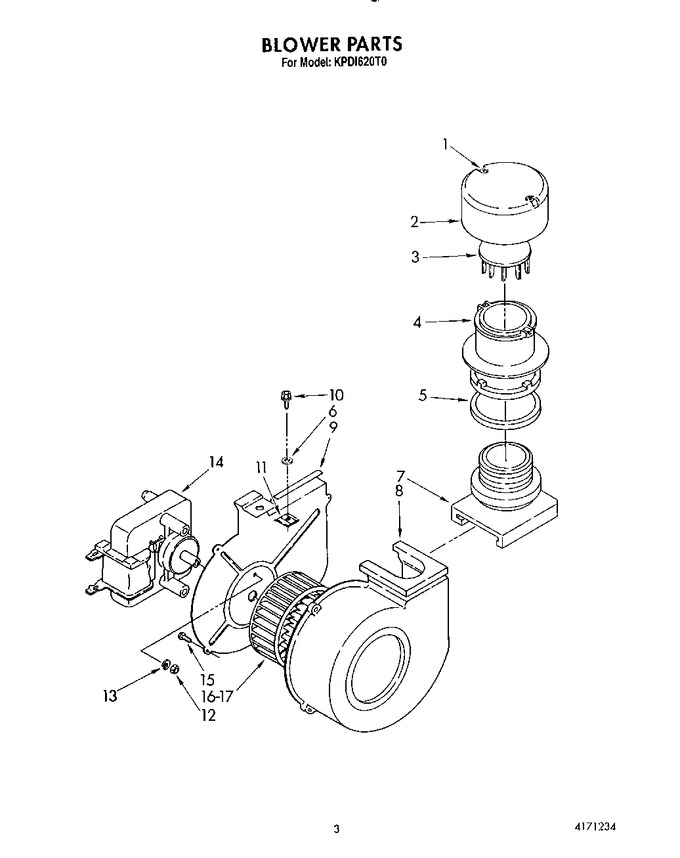

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4159436		Screw, 6-32 X 7/8		Appelez-nous	-
2	4162482		Cap, Air Inlet		Appelez-nous	-
3	4162485		Damper, Air Inlet		Appelez-nous	-
4	4162483		Tube, Air Inlet		Appelez-nous	-
5	4162481		Seal, Air Inlet		Appelez-nous	-
6	4162615		Spacer, Blower Mounting		Appelez-nous	-
7	4162484		Support, Blower		Appelez-nous	-
8	4162487		Housing, Blower		Appelez-nous	-
9	4162486		Plate, Motor Mounting		Appelez-nous	-
10	4162524		Screw, Blower Retainer		Appelez-nous	-
11	4162903		Speednut, Type ``u``		Appelez-nous	-
12	4159071		Nut, 6-32 Hex		Appelez-nous	-
13	4159491		Lockwasher		Appelez-nous	-
14	4162564		Motor, Blower		Appelez-nous	-
15	4171131		Screw, 6 X 1/2		Appelez-nous	-
16	4162499		Blower Wheel Assembly (includes Item 17)		Appelez-nous	-
17	4162489		Retaining Ring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
