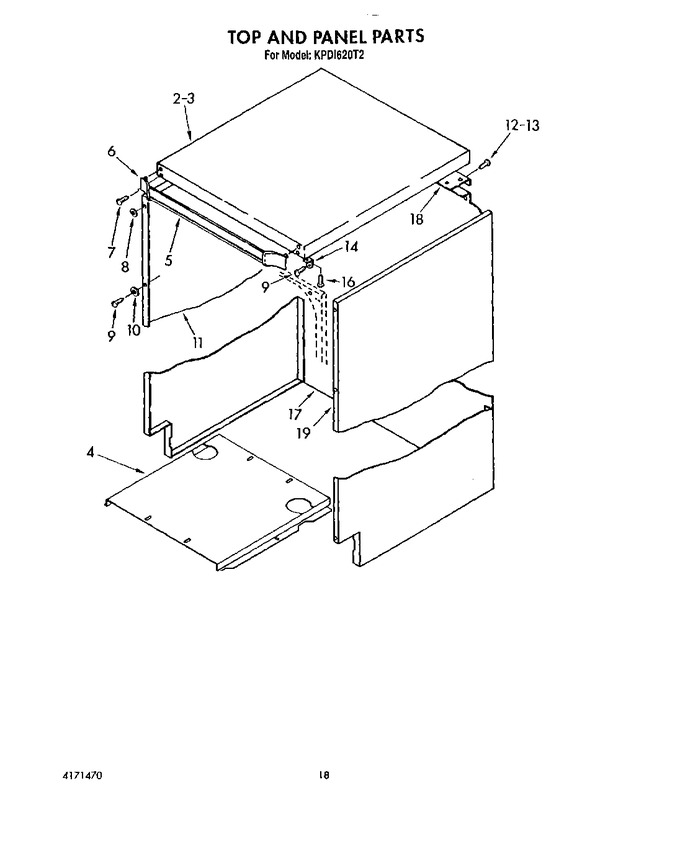

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4162841		Wood Top & Insulation (includes Item 3)		Appelez-nous	-
3	4159472		Screw, 10-13 X 3/4		Appelez-nous	-
4	4171310		Plate, Sound Barrier		Appelez-nous	-
5	4161755		Bar, Guide		Appelez-nous	-
6	4161756		Endcap (guide Bar) (r.h.)		Appelez-nous	-
6	4161757		Endcap (guide Bar) (l.h.)		Appelez-nous	-
7	4159473		Screw, 10-13 X 3/4 (2)		Appelez-nous	-
8	4159494		Lock Washer		Appelez-nous	-
9	4159389		Screw, 10-16 X 1/2 (6)		Appelez-nous	-
10	4159569		Washer		Appelez-nous	-
11	4162977		Side Panel (l.h.) (almond)		Appelez-nous	-
11	4162975		Side Panel (l.h.) (white)		Appelez-nous	-
12	4171147		Screw, 10-16 X 5/16 (8)		Appelez-nous	-
13	4159569		Washer (8)		Appelez-nous	-
14	WP9741251		Bracket, Top Panel Anchor   (Replaces: 4162169)				$ 7.61
16	4159474		Screw, 10-13 X 3/4 (2)		Appelez-nous	-
17	4162962		Panel, Rear (almond)		Appelez-nous	-
17	4162961		Panel, Rear (white)		Appelez-nous	-
18	4162965		Bracket, Rear Panel Anchor		Appelez-nous	-
19	4162974		Side Panel (r.h.) (white)		Appelez-nous	-
19	4162976		Side Panel (r.h.) (almond)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
